GZD15-3HD

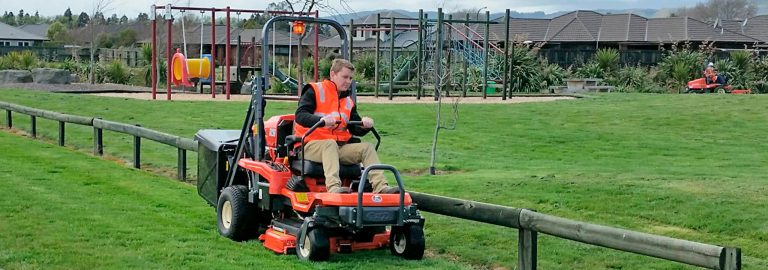

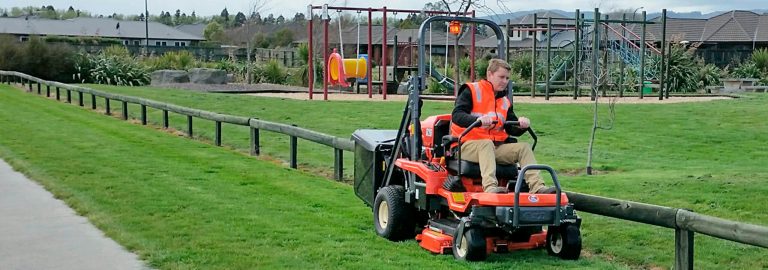

Kubota GZD15 Zero-Turn Mower
Product Features
1
2
3
4
5
Zero-Turn Manoeuvrability
Independent left and right steering levers operate with a light touch to provide the GZD15 with amazing nimbleness-including a 360-degree turning radius to get into tighter spaces to navigate obstacles with ease.
These dual operation levers provide the smooth, precise control you’ll need for delicate trimming and work around trees and flowerbeds.
| Name | GZD15-3HD |
|---|---|
| Engine Type | Liquid cooled |
| Fuel Type | Diesel |
| Cylinders | 2 |
| Engine Model | Kubota Z602 |
| Engine Gross | 15 hp |
| Displacement | 599 cc |
| Fuel Tank Capacity | 19 l |
| Rated Speed | 3,000 rpm |
| Name | GZD15-3HD |
|---|---|
| Transmission | HST, Shaft drive |
| Drive Method | Adjustable Dual Lever Steering |
| Brakes | Wet Disc Brakes with Foot Operated Parking Brake |
| PTO | Shaft Drive with Wet Multi Plate Clutch |
| Name | GZD15-3HD |
|---|---|
| Front | 15 × 6.0 – 6 |
| Rear | 20.0 × 10 – 8 |
| Name | GZD15-3HD |
|---|---|
| Max. Forward Speed | 13.5 km/h |
| Max. Reverse Speed | 10 km/h |
| Name | GZD15-3HD |
|---|---|
| Cutting Width | 1,067 cm |
| Lift System | Hydraulic |
| Mount System | Parallel Linkage |
| Blade Drive System | Hex belt, gear |
| Cutting Height | 25–102, 102–127 mm |
| Max. Mower Lift Height | 135 mm |
| No. of Blades | 2 |
| Name | GZD15-3HD |
|---|---|
| Bag Type | High dump/Hydraulic |
| Bag Capacity | 400 l |
| Lift Height - Max | 1.8 m |
| Name | GZD15-3HD |
|---|---|
| Length | 2,820 mm |
| Width | 1,210 mm |
| Height | 1,930 mm |
| Wheelbase | 1,285 mm |
| Ground Clearance | 135 mm |
| Tread Front | 815 mm |
| Tread Rear | 950/850 2 positions mm |
| Turning Radius | 0 m |
| Weight | 600 kg |
