FDR2572
/ FDR2584

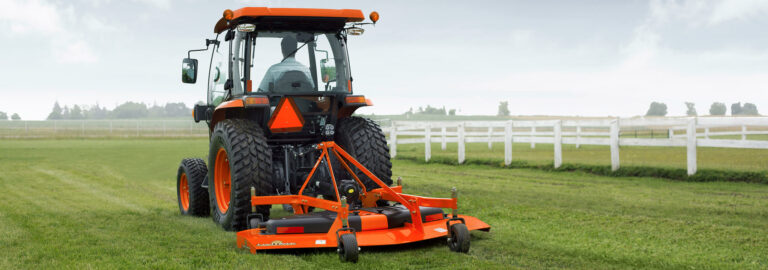

Grooming Mowers FDR25 Series
Model Comparison
- 183 cm
- 213 cm
Product Features
1
2
3
4
Discharge
The wide, even dispersal of grass leaves a fine thin layer directly behind the mower, vs. a possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow around objects.
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Horsepower | 15-60 hp | 15-60 hp |
| Weight | 326 kg | 368 kg |
| Discharge | rear | rear |
| Deck Material Thickness | 3/16 " | 3/16 " |
| Front roller | Optional | Optional |
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Working Width | 183 cm | 213 cm |
| Overall Width | 190 cm | 220 cm |
| Cutting Height (min) | 3/4 " | 3/4 " |
| Cutting Height (max) | 5-1/4 | 5-1/4 |
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Hitch | Cat. 1 | Cat. 1 |
| Lower Hitch | Floating clevis w/ plated pins | Floating clevis w/ plated pins |
| Top link | Floating clevis | Floating clevis |
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Blade thickness | 1/4 " | 5/16 " |
| Blade width | 2-1/2 " | 2-1/2 " |
| Blade length | 25 " | 29 " |
| Blade material | Heat treated alloy steel | Heat treated alloy steel |
| Blade overlap | 1-1/4 " | 1-1/4 " |
| Blade spindles | Greaseable | Greaseable |
| Deck spindle housings | Cast iron greaseable hubs | Cast iron greaseable hubs |
| Blade tip speed | 18,130 fpm | 17,210 fpm |
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Number of wheels | 4 | 4 |
| Wheel type | Castered gauge wheel | Castered gauge wheel |
| Tire material | Solid rubber | Semi-solid |
| Wheel (width) | 3-1/4 " | 4 " |
| Wheel (height) | 10 " | 11 " |
| Castered Wheel Spindle (diameter) | 1 " | 1 " |
| Name | FDR2572 | FDR2584 |
|---|---|---|
| Speed | 540 rpm | 540 rpm |
| Section | B | B |
| Belt | V | V |
| Driveline | Heavy duty with quick coupler | Heavy duty with quick coupler |
