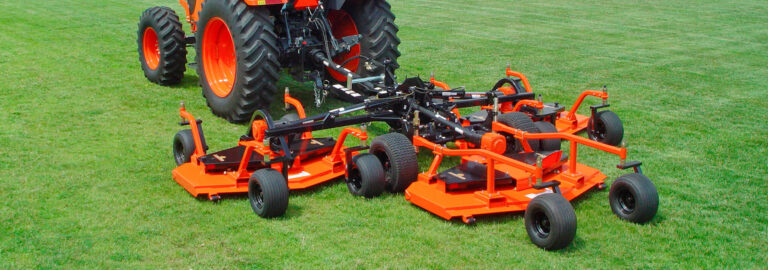

Grooming Mowers AFM42 Series

Model Comparison Product Features Specifications

Agriculture

Implements

Grooming Mowers

Land Pride's AFM42 Series All-Flex Mower provides excellent cut quality and performance on lush turf grasses on expansive and well manicured areas such as fairways, parks, lawns, and sports fields. The AFM42 series offers independent deck flotation and zero turning radius due to the sleek frame design. The contour following capability, highly productive cutting widths, and rear discharge design of the floating cutting decks will greatly reduce wide-area cutting times and still deliver finely groomed surfaces at mowing speeds up to 10 km/h.

Model Comparison

Finance Offers

Download Brochure

3.38 m
4.27 m
5.08 m

Product Features

The Land Pride AFM42 Series All Flex Grooming Mower provides users with an excellent cut quality with exceptional performance on undulating ground due to independent deck flotation. Key advantages of the AFM are low horsepower use and low maintenance compared to similar roller style mowers. The AFM42 series is a very good option for roughs on golf courses, park lands and properties with large expansive lawns.

Rear discharge

Rear discharge with integrated deflectors to evenly spread cut grass for a high quality finish. Discharged foreign objects are aimed downward for improved safety. No rear chains are needed, which tend to clump damp grass.

Rear discharge

Specifications

Highlight differences

Download Brochure

Specifications

Name	AFM4211	AFM4214	AFM4216
Min. Horsepower	30 hp	40 hp	40 hp
Max. Horsepower	65 hp	70 hp	70 hp
Weight	925 kg	1,429 kg	1,572 kg
Discharge	Rear	Rear	Rear
Deck Material Thickness	5 mm	5 mm	5 mm
Anti-Scalp Roller
Gearbox Design	Cast Iron Housing with Beveled Gears	Cast Iron Housing with Beveled Gears	Cast Iron Housing with Beveled Gears

Dimensions

Name	AFM4211	AFM4214	AFM4216
Working Width	3.38 m	4.27 m	5.08 m
Transport Width	2.34 m	2.41 m	2.57 m
Min. Cutting Height	25 mm	19 mm	19 mm
Max. Cutting Height	140 mm	133 mm	133 mm
Cutting Height Increments	6 mm	6 mm	6 mm

Hitch

Name	AFM4211	AFM4214	AFM4216
Hitch	Adjustable Clevis	Adjustable Clevis	Adjustable Clevis

Blades

Name	AFM4211	AFM4214	AFM4216
Blades Per Spindle	2	2	N/A
Number of Blades Per Deck	6	6	6
Blade Thickness	6 mm	8 mm	8 mm
Blade Width	64 mm	64 mm	64 mm
Blade Length	429 mm	531 mm	635 mm
Blade Overlap	30 mm	32 mm	32 mm
Blade Tip Speed	81.4 m/s	93.5 m/s	93.2 m/s

Tyres

Name	AFM4211	AFM4214	AFM4216
Number of Wheels Per Deck	4	4	4
Deck Wheel Type	Castered Gauge Wheel	Castered Gauge Wheel	Castered Gauge Wheel
Deck Tyre Material	Semi-Solid	Semi-Solid	Semi-Solid
Wheel Width	125 mm	241 mm	241 mm
Transport Tyre Diameter	457 mm	584 mm	584 mm
Deck Wheel Spindle Diameter	32 mm	32 mm	32 mm

Drive Train

Name	AFM4211	AFM4214	AFM4216
PTO Speed	540 rpm	540 rpm	540 rpm
Blade Drive Belt	B-Section	B-Section	B-Section
Drive Belt Tensioning	Spring Loaded Idler	Spring Loaded Idler with Overcenter Release	Spring Loaded Idler with Overcenter Release
