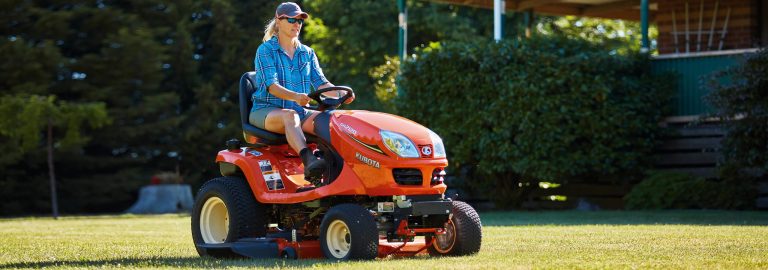

Kubota GR-Series Ride-On Mower

Model Comparison Product Features Specifications

Kubota's GR Series all-wheel drive, diesel-powered ride-on mowers are built to last. Fuel efficient, reliable and requiring little routine maintenance, the GR Series is ideal for residential operators that require a mower that tackles hilly terrain and the toughest mowing jobs with ease. Contoured mower decks come in two sizes, 48" and 54" that raise and lower hydraulically. The GR2120 is equipped with Kubota’s exclusive ‘Glide Steer’ technology, which offers excellent manoeuvrability and exceptional traction while preventing turf damage.

Model Comparison

Finance Offers

Download Brochure

17 hp
17 hp

Product Features

Diesel Powered

Tapping Kubota’s legendary heritage of quality engine design, the GR2120 is powered by a Kubota 17HP, 3-cylinder diesel engine, generating a high torque rise that easily handles hours of heavy-duty mowing.

Diesel Powered

Specifications

Highlight differences

Download Brochure

Engine

Name	GR2120-48	GR2120-54
Engine Type	Water cooled	Water cooled
Fuel Type	Diesel	Diesel
Cylinders	3	3
Engine Model	Kubota D782	Kubota D782
Engine Gross	17 hp	17 hp
Displacement	778 cc	778 cc
Fuel Tank Capacity	18 l	18 l

Drive Train

Name	GR2120-48	GR2120-54
Transmission	HST, Shaft Drive	HST, Shaft Drive
Drive Method	4 w/Cruise control	4 w/Cruise control
Brakes	Internal expanding brake	Internal expanding brake
PTO Clutch	Hydraulic wet multi discs	Hydraulic wet multi discs

Tyre Size

Name	GR2120-48	GR2120-54
Front	16 × 7.5 – 8	N/A
Rear	23 × 10.50 – 12	N/A

Travelling Speeds

Name	GR2120-48	GR2120-54
Max. Forward Speed	10 km/h	10 km/h
Max. Reverse Speed	5 km/h	5 km/h

Mower Deck

Name	GR2120-48	GR2120-54
Model	RCK48GR	RCK54GR
Cutting Width	1,219 mm	1,372 mm
Lifting Device	Hydraulic	Hydraulic
Mower Mounting Method	Parallel linkage	Parallel linkage
Cutting Height	25 - 102 mm	25 - 102 mm
Cutting Height Adjustment	Dial gauge	Dial gauge
Cutting Height Increments	1/4"	1/4"
Number of Blades	3	3
Direction of Discharge	Right side	Right side
Minimum Uncut Diameter	1,100 mm	900 mm
Mower Deck Ground Clearance	140 mm	140 mm

Grass Catcher

Name	GR2120-48	GR2120-54
Bag Type	3 Bag, Manual Dump, Blower Assembly	3 Bag, Manual Dump, Blower Assembly
Bag Capacity	247 l	247 l

Dimensions

Name	GR2120-48	GR2120-54
Length	1,960 mm	1,960 mm
Width	1,700 mm	1,700 mm
Height	1,290 mm	1,290 mm
Wheelbase	1,280 mm	1,280 mm
Ground Clearance	140 mm	140 mm
Tread Front	825 mm	825 mm
Tread Rear	800 mm	800 mm
Weight	440 kg	440 kg
