F2890-72
/ F3690-60
/ F3690SN-72

F Series Out-front Mowers

Model Comparison Product Features Attachments Specifications

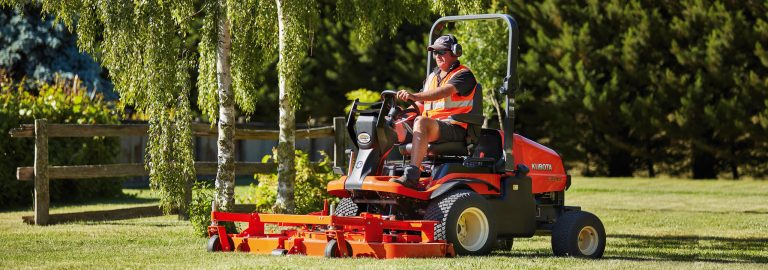

F Series Out-front Mowers previewF Series Out-front Mowers
Whatever your mowing application, there’s a Kubota F-Series mower that can do the job with power, precision, and efficiency. With standard 4WD, and a choice of either a Kubota 28HP or 36HP diesel engine and 60″ or 72″ side or rear discharge pro deck, you get the job done faster with an exceptional cut and finish that is sure to impress even the toughest clientele. A powerful hydrostatic transmission provides quick response, excellent working speed, and more muscle for tough mowing jobs, and shaft drive means no belts or pulleys – just smooth and direct power transfer from the engine to the deck.

Model Comparison

Finance Offers
Download Brochure
  • 28 hp
  • 36 hp
  • 36 hp

Product Features

kubota previewkubota
1
2
3
4
5
6

Power & Performance

The 3-cylinder Kubota diesel engines mean faster, more efficient job performance. These F-Series diesel engines have power to spare. Their high torque rise ensures faster, smoother recovery under sudden loading, letting you power through tall or wet grass without skipping a beat. They're also environmentally and economically friendly, thanks to their enhanced combustion efficiency, low vibration and noise levels, and reduced fuel costs.

Power & Performance

The 3-cylinder Kubota diesel engines mean faster, more efficient job performance. These F-Series diesel engines have power to spare. Their high torque rise ensures faster, smoother recovery under sudden loading, letting you power through tall or wet grass without skipping a beat. They're also environmentally and economically friendly, thanks to their enhanced combustion efficiency, low vibration and noise levels, and reduced fuel costs.

Mower Deck previewMower Deck

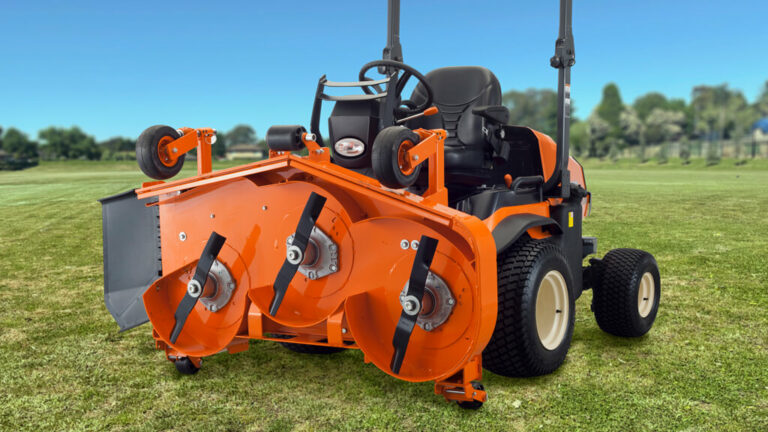

Mower Deck

RCK60P-F39
Mower Deck previewMower Deck

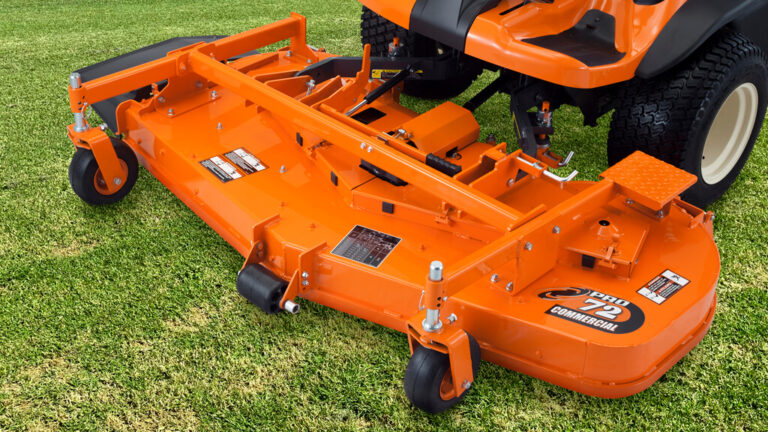

Mower Deck

RCK72P-F39
Mower Deck previewMower Deck

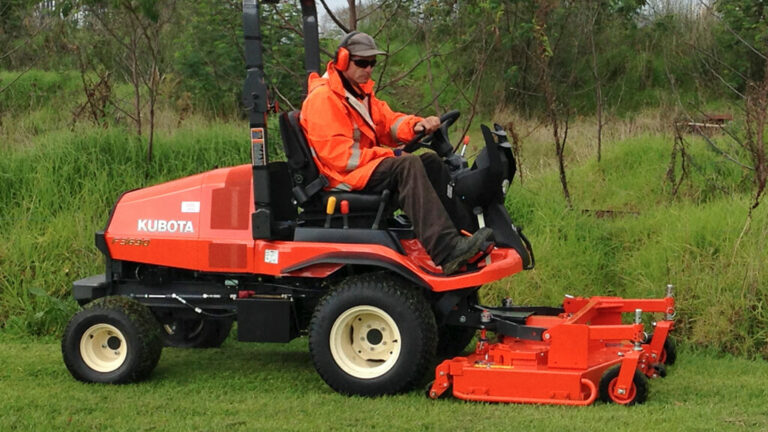

Mower Deck

RCK60R-F36
Mower Deck previewMower Deck

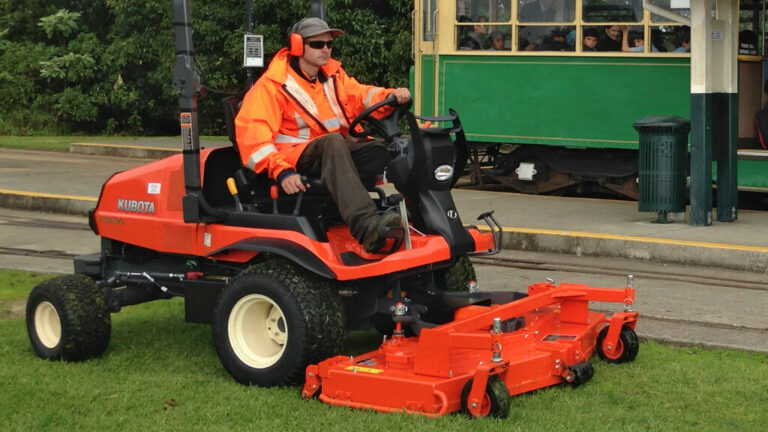

Mower Deck

RCK72R-F36

Specifications

Download Brochure
Engine
Name F2890-72 F3690-60 F3690SN-72
Engine Type Liquid cooled Liquid cooled Liquid cooled
Fuel Type Diesel Diesel Diesel
Cylinders 3 4 4
Engine Model Kubota D1105 Kubota V1505 Kubota V1505
Engine Gross 28 hp 36 hp 36 hp
Displacement 1,123 cc 1,498 cc 1,498 cc
Fuel Tank Capacity 61 l 61 l 61 l
Rated speed 3,000 rpm 3,000 rpm 3,000 rpm
Name F2890-72 F3690-60 F3690SN-72
Transmission HST HST HST
Ranges 2 2 2
Drive method 4WD 4WD 4WD
Brakes Wet discs Wet discs Wet discs
PTO Shaft Drive with Wet Multi Disc Clutch, Wet Single Plate PTO Brake Shaft Drive with Wet Multi Disc Clutch, Wet Single Plate PTO Brake Shaft Drive with Wet Multi Disc Clutch, Wet Single Plate PTO Brake
Name F2890-72 F3690-60 F3690SN-72
Front 24×12-12 24×12-12 24×12-12
Rear 18×9.5-8 18×9.5-8 18×9.5-8
Name F2890-72 F3690-60 F3690SN-72
Travel Speed 20 km/h 20 km/h 20 km/h
Reverse 0 - 11 km/h 0 - 11 km/h 0 - 11 km/h
Name F2890-72 F3690-60 F3690SN-72
Bag Type Blower Hopper Blower Hopper Blower Hopper
Bag Capacity 400 l 400 l 400 l
Chute - Diameter 8" 8" 8"
Dump Height 927 mm 927 mm 927 mm
Dump cycle 3 seconds up / 3 seconds down 3 seconds up / 3 seconds down 3 seconds up / 3 seconds down
Name F2890-72 F3690-60 F3690SN-72
Length 2,450 mm 2,450 mm 2,450 mm
Width 1,370 mm 1,370 mm 1,370 mm
Height 1,985 mm 1,985 mm 1,985 mm
Wheelbase 1,300 mm 1,300 mm 1,300 mm
Ground clearance 185 mm 185 mm 185 mm
Tread Front 1,047 mm 1,047 mm 1,047 mm
Tread Rear 997 mm 997 mm 997 mm
Turning radius 720 mm 720 mm 720 mm
Weight 748 kg 765 kg 765 kg
