U48-4

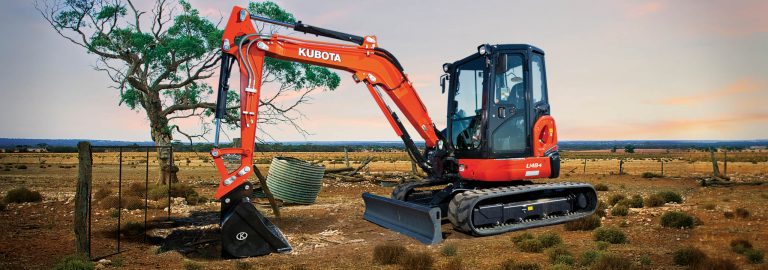

Kubota U48-4 Excavator
Model Comparison
- 10.1 HP
- 15.1 HP
- 15.1 HP
- 19.8 HP
- 20 HP
- 23.9 HP
- 40.2 HP
- 45.4 HP
- 45.4 HP

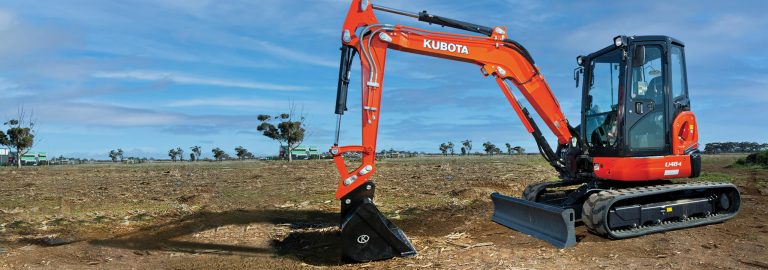

Product Features
1
2
3
4
5
Engine & Service
Powered by Kubota's impressive 47.6 HP direct injection V2607-DI engine (Tier IV compliant). Engineered with the power to maximise digging and lifting performance, it also delivers minimised noise, vibration and fuel consumption.
Two-piece hose design for the dozer simplifies hose replacement and reduces downtime. Single sided maintenance for operator convenience and easy access to daily maintenance components. Front pin bushes maximise durability and longevity to cut downtime. The U48-4 features long-lasting side panels that open easily for quick inspection and routine maintenance. The panels are located inside the counterweight edge for protection and durability.
| Name | U48-4 |
|---|---|
| Engine Type | Interim Tier 4 Emission Level |
| Fuel Type | Diesel |
| Cylinders | 4 |
| Engine Model | Kubota V2607-DI |
| Engine Net | 40.2 HP |
| Engine Gross | 41.8 HP |
| Displacement | 2,615 cc |
| Rated Speed | 2,200 rpm |
| Name | U48-4 |
|---|---|
| Max. Traction Force | 5,440 kgf |
| Tumbler Distance | 1,990 mm |
| Crawler Length | 2,500 mm |
| Shoe Width | 400 mm |
| Ground Contact Pressure - Canopy (Per cm2) | 0.275 kgf |
| Ground Contact Pressure - Cab (Per cm2) | 0.279 kgf |
| Name | U48-4 |
|---|---|
| Pump Capacity | 118.8 l/min |
| Aux Hydraulic Flow - AUX1 | 70 l/min |
| Aux Hydraulic Flow - AUX2 | 37 l/min |
| Max. Breakout Force - Bucket | 3,360 kgf |
| Max. Breakout Force - Arm | 2,245 kgf |
| Name | U48-4 |
|---|---|
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 9.3 rpm |
| Boom Swing Angle Left | 70 degree |
| Boom Swing Angle Right | 55 degree |
| Name | U48-4 |
|---|---|
| Low | 2.8 km/h |
| High | 4.9 km/h |
| Name | U48-4 |
|---|---|
| Length | 5,330 mm |
| Width | 1,960 mm |
| Height - Canopy | 2,550 mm |
| Height - Cab | 2,550 mm |
| Min. Ground Clearance | 310 mm |
| Operating Weight - Canopy | 4,760 kg |
| Operating Weight - Cab | 4,850 kg |
| Name | U48-4 |
|---|---|
| Max. Blade Width | 1,960 mm |
| Blade Height | 410 mm |
| Max. Lift Above Ground | 440 mm |
| Max. Drop Below Ground | 410 mm |
| Name | U48-4 |
|---|---|
| Fuel Reservoir | 68 l |
| Hydraulic Oil Reservoir | 45 l |
| Hydraulic Oil System | 79 l |
| Engine Oil | 9 l |
| Name | U48-4 |
|---|---|
| Operator Station | Canopy and Cab |
| Name | U48-4 |
|---|---|
| Max. Digging Height | 5,440 mm |
| Max. Dumping Height | 3,770 mm |
| Max. Digging Depth | 3,380 mm |
| Max. Vertical Digging Depth | 2,670 mm |
| Max. Digging Radius At Ground | 5,710 mm |
| Max. Digging Radius | 5,850 mm |
| Min. Turning Radius - w/o Swing | 2,390 mm |
| Min. Turning Radius - Swing | 1,960 mm |
| Min. Tail Turning Radius | 990 mm |
