U35-4

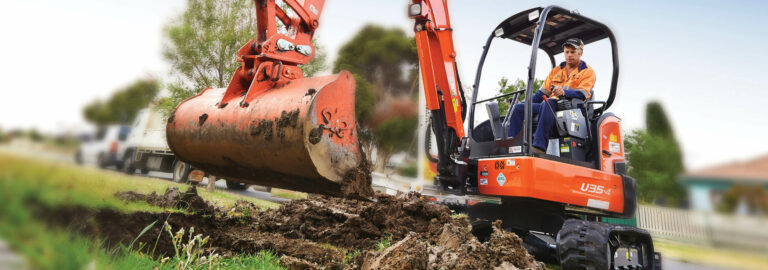

Kubota U35-4 Mini Excavator

The Kubota U35-4 is a class leading, zero swing excavator offering more room then ever before. Powered by a reliable Kubota 24.8HP engine, the Kubota U35-4 combines superior power and outstanding versatility to tackle a wide variety of jobs and conditions. Handle any job with confidence. Operate auxiliary attachments more easily than ever with precise oil flow control to the auxiliary circuit. More powerful arm breakout force combined with an array of enhanced functions results in the smooth, productive operation Kubota machines are known for.

Model Comparison

Finance Offers

Download Brochure

10.1 HP
15.1 HP
15.1 HP
19.8 HP
20 HP
23.9 HP
40.2 HP
45.4 HP
45.4 HP

Product Features

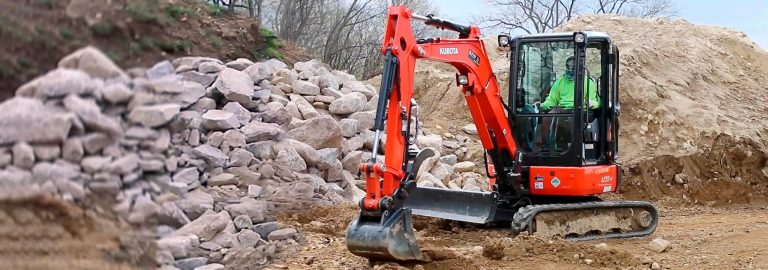

Engine & Service

Powered by Kubota's impressive 24.8 HP direct injection D1703M-DI-E4 engine (Tier IV compliant). Engineered with the power to maximise digging and lifting performance, it also delivers minimised noise, vibration and fuel consumption.

Thanks to the full-opening rear and right side bonnets, engine, control valves and various components are accessible for easy inspection and repair.Kubota’s attention to user-friendliness can even be found in U35-4’s engine layout. Primary engine components are consolidated onto one side for easier access so inspections and repairs can be made quickly and easily.

Engine & Service

Kubota U35-4 Mini Excavator in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota U35-4 Mini Excavator.

Dig Deep

DTE Issue 2

Specifications

Download Brochure

Engine

Name	U35-4
Engine Type	Tier 4 Compliant
Fuel Type	Diesel
Cylinders	3
Engine Model	Kubota D1703M-DI-E4
Engine Net	23.9 HP
Engine Gross	24.8 HP
Displacement	1,647 cc
Rated Speed	2,200 rpm

Drive System

Name	U35-4
Max. Traction Force	2,760 kgf
Tumbler Distance	1,670 mm
Crawler Length	2,090 mm
Shoe Width	295 mm
Ground Contact Pressure - Canopy (Per cm2)	0.34 kgf
Ground Contact Pressure - Cab (Per cm2)	0.34 kgf

Hydraulics

Name	U35-4
Hydraulic Pump Capacity	39.6 x 2/ 20.9 x1 l/min
Aux Hydraulic Flow - AUX1	60 l/min
Max. Breakout Force - Bucket	2,810 kgf
Max. Breakout Force - Arm	1,920 kgf

Swing System

Name	U35-4
Swing System	Zero Tail Swing
Unit Swing Speed	8.5 rpm
Boom Swing Angle Left	70 degree
Boom Swing Angle Right	48 degree

Travelling Speeds

Name	U35-4
Low	3 km/h
High	4.6 km/h

Dimensions

Name	U35-4
Length	4,750 mm
Width	1,700 mm
Height - Canopy	2,480 mm
Height - Cab	2,470 mm
Min. Ground Clearance	290 mm
Operating Weight - Canopy	3,850 kg
Operating Weight - Cab	3,996 kg

Blade

Name	U35-4
Max. Blade Width	1,700 mm
Blade Height	340 mm
Max. Lift Above Ground	370 mm
Max. Drop Below Ground	370 mm

Fluid Capacity

Name	U35-4
Fuel Reservoir	45 l
Hydraulic Oil Reservoir	36 l
Hydraulic Oil System	61 l
Engine Oil	5.3 l

Safety Equipment

Name	U35-4
Canopy
Cab

Working Range

Name	U35-4
Max. Digging Height	4,840 mm
Max. Dumping Height	3,400 mm
Max. Digging Depth	3,010 mm
Max. Vertical Digging Depth	2,010 mm
Max. Digging Radius At Ground	5,170 mm
Max. Digging Radius	5,280 mm
Min. Turning Radius - w/o Swing	2,220 mm
Min. Turning Radius - Swing	1,760 mm
Min. Tail Turning Radius	900 mm
