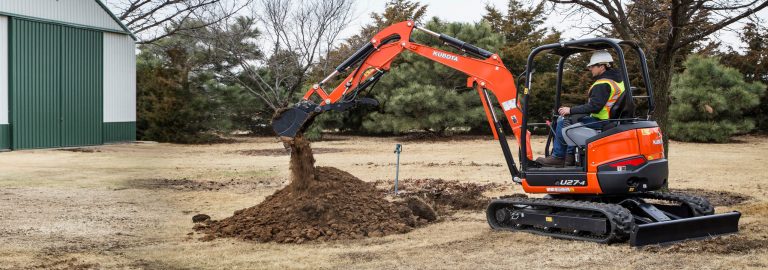

Kubota U27-4 Mini Excavator
Model Comparison
- 10.1 HP
- 15.1 HP
- 15.1 HP
- 19.8 HP
- 20 HP
- 23.9 HP
- 40.2 HP
- 45.4 HP
- 45.4 HP
Product Features
Engine & Maintenance
Powered by a Kubota 20.8HP engine for reliability and to maximise digging and lifting performance. Easy maintenance as the engine is organised with easy access to the radiator and engine oil cooler. Protected cylinder hoses located inside the boom to minimise damage. Travel lock system to lock tracks and secure machine by preventing movement during transport or parking.
Kubota U27-4 Mini Excavator in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota U27-4 Mini Excavator.
| Name | U27-4 |
|---|---|
| Engine Type | Tier 4 Compliant |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D1105-BH |
| Engine Net | 20 HP |
| Engine Gross | 20.9 HP |
| Displacement | 1,123 cc |
| Rated Speed | 2,400 rpm |
| Name | U27-4 |
|---|---|
| Max. Traction Force | 3,069 kgf |
| Tumbler Distance | 1,560 mm |
| Crawler Length | 1,990 mm |
| Shoe Width | 300 mm |
| Ground Contact Pressure (Per cm2) | 0.23 kgf |
| Name | U27-4 |
|---|---|
| Hydraulic Pump Capacity | 28.8 variable x2 / 19.2 Gear x1 l/min |
| Aux Hydraulic Flow - AUX1 | 48 l/min |
| Aux Hydraulic Flow - AUX2 | 19.2 l/min |
| Max. Breakout Force - Bucket | 2,645 kgf |
| Max. Breakout Force - Arm | 1,260 kgf |
| Name | U27-4 |
|---|---|
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 9.9 rpm |
| Boom Swing Angle Left | 75 degree |
| Boom Swing Angle Right | 55 degree |
| Name | U27-4 |
|---|---|
| Low | 2.6 km/h |
| High | 4.3 km/h |
| Name | U27-4 |
|---|---|
| Length | 4,100 mm |
| Width | 1,500 mm |
| Height - Canopy | 2,420 mm |
| Min. Ground Clearance | 307 mm |
| Operating Weight - Canopy | 2,570 kg |
| Name | U27-4 |
|---|---|
| Blade Width | 1,500 mm |
| Blade Height | 300 mm |
| Max. Lift Above Ground | 360 mm |
| Max. Drop Below Ground | 320 mm |
| Name | U27-4 |
|---|---|
| Fuel Reservoir | 33 l |
| Hydraulic Oil Reservoir | 22 l |
| Hydraulic Oil System | 37 l |
| Engine Oil | 3.6 l |
| Name | U27-4 |
|---|---|
| Operator Station | Canopy |
| Name | U27-4 |
|---|---|
| Max. Digging Height | 4,370 mm |
| Max. Dumping Height | 3,100 mm |
| Max. Digging Depth | 2,820 mm |
| Max. Vertical Digging Depth | 2,580 mm |
| Max. Digging Radius At Ground | 4,630 mm |
| Max. Digging Radius | 4,740 mm |
| Min. Turning Radius - w/o Swing | 1,970 mm |
| Min. Turning Radius - Swing | 1,539 mm |
| Min. Tail Turning Radius | 790 mm |
