U25-3S

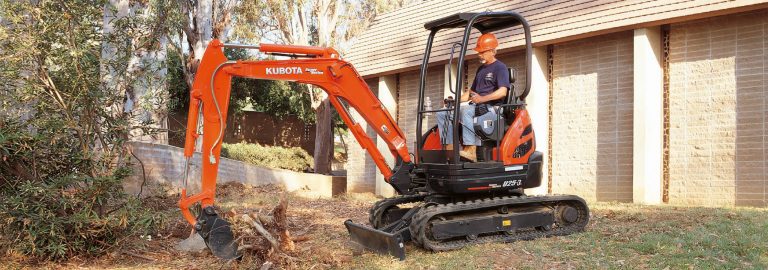

Kubota U25-3S Excavator
Model Comparison
- 10.1 HP
- 15.1 HP
- 15.1 HP
- 19.8 HP
- 20 HP
- 23.9 HP
- 40.2 HP
- 45.4 HP
- 45.4 HP
Product Features

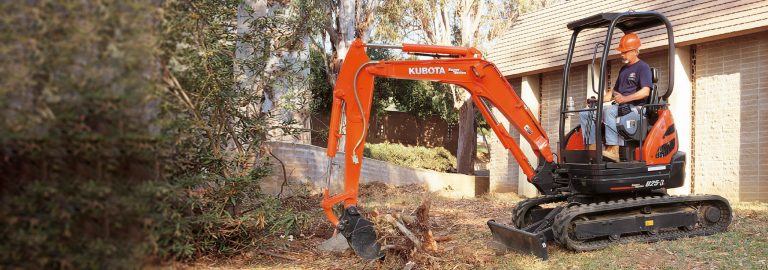

Kubota’s U25-3S compact excavator features start with zero tail swing, includes strong bucket breakout force, and an advanced digital information panel, you know this excavator has what it takes to do the job. When larger machines won't fit, the U25-3S can get in, get the job done, and get back out again with superior speed and maximum efficiency.
1
2
3
4
5
6
7
Engine
Powered by a Kubota 20.9HP engine, for powerful performance and agility to get in and out of the tightest spaces with ease. The U25-3S diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency, and complies with the EPA’s 2013 Tier IV emissions regulations.
| Name | U25-3S |
|---|---|
| Engine Type | Tier 4 Compliant |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D1105-E3 |
| Engine Net | 19.8 HP |
| Engine Gross | 20.9 HP |
| Displacement | 1,123 cc |
| Rated Speed | 2,400 rpm |
| Name | U25-3S |
|---|---|
| Max. Traction Force | 3,060 kgf |
| Tumbler Distance | 1,560 mm |
| Crawler Length | 2,000 mm |
| Shoe Width | 300 mm |
| Ground Contact Pressure (Per cm2) | 0.23 kgf |
| Name | U25-3S |
|---|---|
| Hydraulic Pump Capacity | 28.8 Piston x2 / 19.2 Gear x 1 l/min |
| Aux Hydraulic Flow - AUX1 | 48 l/min |
| Max. Breakout Force - Bucket | 2,320 kgf |
| Max. Breakout Force - Arm | 1,245 kgf |
| Name | U25-3S |
|---|---|
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 9.8 rpm |
| Boom Swing Angle Left | 75 degree |
| Boom Swing Angle Right | 55 degree |
| Name | U25-3S |
|---|---|
| Low | 2.5 km/h |
| High | 4.5 km/h |
| Name | U25-3S |
|---|---|
| Length | 4,150 mm |
| Width | 1,500 mm |
| Height - Canopy | 2,420 mm |
| Min. Ground Clearance | 285 mm |
| Operating Weight - Canopy | 2,545 kg |
| Name | U25-3S |
|---|---|
| Max. Blade Width | 1,500 mm |
| Blade Height | 300 mm |
| Max. Lift Above Ground | 360 mm |
| Max. Drop Below Ground | 320 mm |
| Name | U25-3S |
|---|---|
| Fuel Reservoir | 28 l |
| Hydraulic Oil Reservoir | 22 l |
| Hydraulic Oil System | 37 l |
| Engine Oil | 4.4 l |
| Name | U25-3S |
|---|---|
| Operator Station | Canopy |
| Name | U25-3S |
|---|---|
| Max. Digging Height | 4,530 mm |
| Max. Dumping Height | 3,210 mm |
| Max. Digging Depth | 2,810 mm |
| Max. Vertical Digging Depth | 1,960 mm |
| Max. Digging Radius At Ground | 4,670 mm |
| Max. Digging Radius | 4,770 mm |
| Min. Turning Radius - w/o Swing | 1,900 mm |
| Min. Turning Radius - Swing | 1,420 mm |
| Min. Tail Turning Radius | 760 mm |
