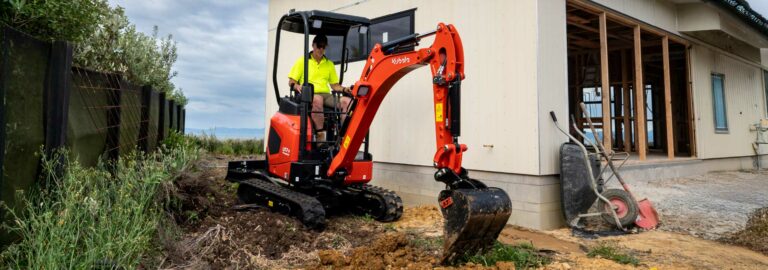

Kubota U17-5 Premium Mini Excavator

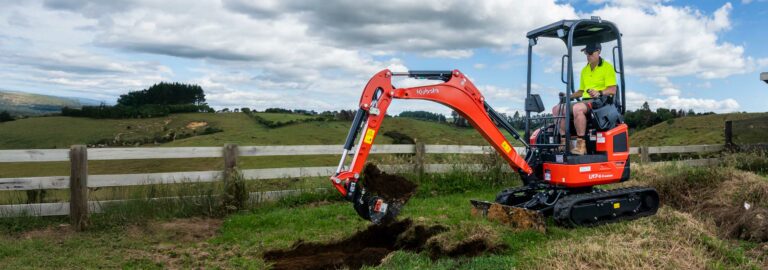

The new U17-5 premium zero-tail swing compact excavator gives you the performance and efficiency required in tight and narrow spaces. This model will be offered along side our world renown U17-3 which provides you with many options for this 1.7 tonne classed excavator. Key features include a modern -5 design, standard AUX1 and AUX2 with proportional lever controls, semi suspension seat and LED lighting. Along with Auto-shift and Auto Idle to reduce emissions and save on operating costs. This compact excavator delivers the performance and productivity required in today's market.

Model Comparison

Finance Offers

Download Brochure

10.1 HP
15.1 HP
15.1 HP
19.8 HP
20 HP
23.9 HP
40.2 HP
45.4 HP
45.4 HP

Product Features

Engine

The U17-5 Premium features a reliable and powerful 16.1HP (ross) Kubota engine, which complies with Tier 4 Stage IV emission regulations.

The rear bonnet allows for easy access to main serviceable items, along with a clean engine layout.

Engine

The U17-5 Premium features a reliable and powerful 16.1HP (ross) Kubota engine, which complies with Tier 4 Stage IV emission regulations.

The rear bonnet allows for easy access to main serviceable items, along with a clean engine layout.

Specifications

Download Brochure

Engine

Name	U17-5
Engine Type	Tier 4 Stage 5
Fuel Type	Diesel
Cylinders	3
Engine Model	Kubota D902-E4-BH-6EU
Engine Net	15.1 HP
Engine Gross	16.1 HP
Displacement	898 cc
Rated Speed	2,300 rpm

Drive System

Name	U17-5
Max. Traction Force	1,438 kgf
Tumbler Distance	1,230 mm
Crawler Length	1,580 mm
Shoe Width	230 mm
Ground Contact Pressure (Per cm2)	0.29 kgf

Hydraulics

Name	U17-5
Hydraulic Pump Capacity	17.3 x 2 / 10.4 x 1 l/min
Aux Hydraulic Flow - AUX1	27.7 l/min
Aux Hydraulic Flow - AUX2	10.4 l/min
Max. Breakout Force - Bucket	1,609 kgf
Max. Breakout Force - Arm	887.2 kgf

Swing System

Name	U17-5
Swing System	Zero Tail Swing
Unit Swing Speed	9.4 rpm
Boom Swing Angle Left	63 degree
Boom Swing Angle Right	58 degree

Travelling Speeds

Name	U17-5
Low	2.3 km/h
High	4.4 km/h

Dimensions

Name	U17-5
Length	3,550 mm
Width	1,000 mm
Max. Width	1,300 mm
Height - Canopy	2,370 mm
Min. Ground Clearance	155 mm
Operating Weight - Canopy	1,780 kg

Blade

Name	U17-5
Min. Blade Width	990 mm
Max. Blade Width	1,300 mm
Blade Height	260 mm
Max. Lift Above Ground	280 mm
Max. Drop Below Ground	205 mm

Fluid Capacity

Name	U17-5
Fuel Reservoir	20 l
Hydraulic Oil Reservoir	13 l
Hydraulic Oil System	21.8 l
Engine Oil	3.6 l

Safety Equipment

Name	U17-5
Operator Station	Canopy

Working Range

Name	U17-5
Max. Digging Height	3,540 mm
Max. Dumping Height	2,440 mm
Max. Digging Depth	2,310 mm
Max. Vertical Digging Depth	1,680 mm
Max. Digging Radius At Ground	3,840 mm
Max. Digging Radius	3,900 mm
Min. Turning Radius - w/o Swing	1,440 mm
Min. Turning Radius - Swing	1,210 mm
Min. Tail Turning Radius	650 mm
