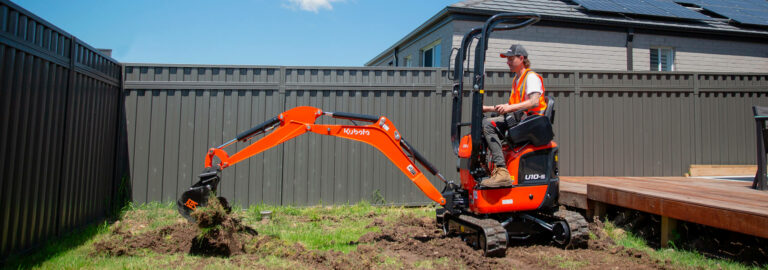

Kubota U10-5 Mini Excavator
Model Comparison
- 10.1 HP
- 15.1 HP
- 15.1 HP
- 19.8 HP
- 20 HP
- 23.9 HP
- 40.2 HP
- 45.4 HP
- 45.4 HP
Product Features

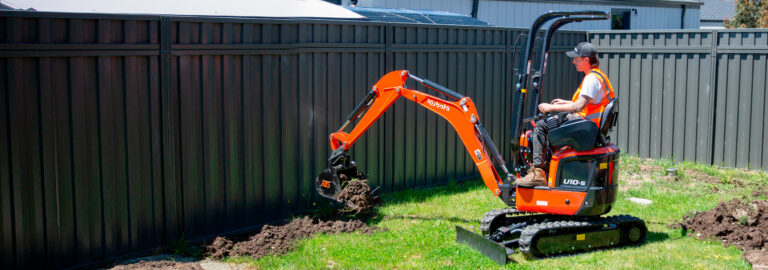

Zero Tail Swing Design
The U10-5 has an ultra-compact design with zero tail swing allowing you to work safely in narrow areas, ensuring that you are working within the track width of the machine.
Kubota U10-5 Mini Excavator in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota U10-5 Mini Excavator.
| Name | U10-5 |
|---|---|
| Engine Type | Tier 4 Stage 5 |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D722-E4-BH-5US |
| Engine Net | 10.1 HP |
| Engine Gross | 10.3 hp |
| Displacement | 719 cc |
| Rated Speed | 2,050 rpm |
| Name | U10-5 |
|---|---|
| Max. Traction Force | 826 kgf |
| Tumbler Distance | 1,010 mm |
| Crawler Length | 1,340 mm |
| Shoe Width | 180 mm |
| Ground Contact Pressure - Canopy (Per cm2) | 0.3 kgf |
| Name | U10-5 |
|---|---|
| Hydraulic Pump Capacity | 10.5 × 2 / 3.1 × 1 l/min |
| Aux Hydraulic Flow - AUX1 | 21 l/min |
| Max. Breakout Force - Bucket | 1,060 kgf |
| Max. Breakout Force - Arm | 550 kgf |
| Name | U10-5 |
|---|---|
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 8.3 rpm |
| Boom Swing Angle Left | 55 degree |
| Boom Swing Angle Right | 55 degree |
| Name | U10-5 |
|---|---|
| Low | 2 km/h |
| High | 4 km/h |
| Name | U10-5 |
|---|---|
| Length | 2,980 mm |
| Width | 750 mm |
| Max. Width | 990 mm |
| Height - Canopy | 2,260 mm |
| Min. Ground Clearance | 140 mm |
| Operating Weight - Canopy | 1,200 kg |
| Name | U10-5 |
|---|---|
| Min. Blade Width | 750 mm |
| Max. Blade Width | 990 mm |
| Blade Height | 200 mm |
| Max. Lift Above Ground | 215 mm |
| Max. Drop Below Ground | 190 mm |
| Name | U10-5 |
|---|---|
| Fuel Reservoir | 12 l |
| Hydraulic Oil Reservoir | 12.6 l |
| Hydraulic Oil System | 17.1 l |
| Engine Oil | 2.8 l |
| Name | U10-5 |
|---|---|
| Operator Station | Canopy |
| Name | U10-5 |
|---|---|
| Max. Digging Height | 3,050 mm |
| Max. Dumping Height | 2,210 mm |
| Max. Digging Depth | 1,800 mm |
| Max. Vertical Digging Depth | 1,550 mm |
| Max. Digging Radius At Ground | 3,330 mm |
| Max. Digging Radius | 3,380 mm |
| Min. Turning Radius - w/o Swing | 1,260 mm |
| Min. Turning Radius - Swing | 1,075 mm |
| Min. Tail Turning Radius | 510 mm |
