CASE Excavator CX490D

Model Comparison Product Features Specifications

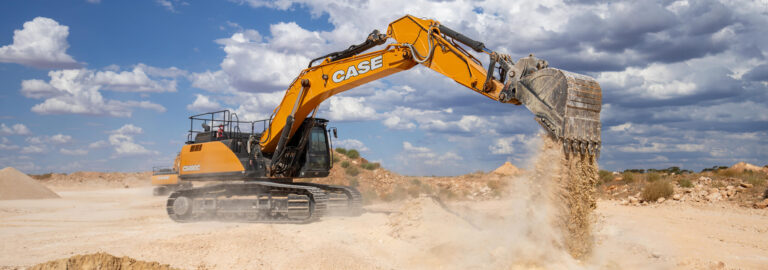

CASE Excavator CX490D previewCASE Excavator CX490D
CX490D excavators deliver exceptional performances with controllability and speed suited to reliably perform even under severe stress and in harsh environments, while keeping the operator always safe and comfortable, both inside and outside of the cab. Its durable structure and components make it a great companion for a variety of tasks, whether it is for working in residential building construction or quarrying applications, the CX490D is a trusted and reliable machine to keep you always up and running. CX490D excavators deliver exceptional performances with controllability and speed suited to reliably perform even under severe stress and in harsh environments, while keeping the operator always safe and comfortable, both inside and outside of the cab. Its durable structure and components make it a great companion for a variety of tasks, whether it is for working in residential building construction or quarrying applications, the CX490D is a trusted and reliable machine to keep you always up and running.

Model Comparison

Finance Offers
Download Brochure
  • 73 kW (97.9 hp)
  • 92.2 kW (123.6 hp)
  • 122 kW (163.6 hp)
  • 140 kW /188 hp @ 2000 min-¹
  • 180 kW /241 hp @ 2000 min-¹
  • 200 kW /268 hp @ 2000 min-¹
  • 270 kW (362.1 hp)
  • 270 kW (362.1 hp)

Product Features

kubota previewkubota
1
2
3
4

ISUZU Stage V Engine with SCR + DOC System

The CX490D is powered by a 9.84L ISUZU VE-6UZ1X engine with advanced SCR and DOC aftertreatment. This Stage V compliant system delivers 362 hp and 1567 Nm of torque while maintaining outstanding fuel efficiency and low emissions. The high-pressure common rail injection and air-cooled intercooler ensure strong, responsive performance with minimal maintenance downtime.

ISUZU Stage V Engine with SCR + DOC System

The CX490D is powered by a 9.84L ISUZU VE-6UZ1X engine with advanced SCR and DOC aftertreatment. This Stage V compliant system delivers 362 hp and 1567 Nm of torque while maintaining outstanding fuel efficiency and low emissions. The high-pressure common rail injection and air-cooled intercooler ensure strong, responsive performance with minimal maintenance downtime.

Specifications

Download Brochure
Engine
Name CX490D
Engine Type Water-cooled, 4-cycle diesel, 6-cylinder in line, electronically controlled, high pressure common rail system, turbocharger with air cooled intercooler, without cooling fan , SCR system.
Model ISUZU VE-6UZ1X
Bore/Stroke 120 × 145 mm
Displacement 9.84 l
Horsepower 270 kW (362.1 hp)
Maximum torque 1,567 Nm
Name CX490D
Max oil flow 2 × 364 l/min
Type 2 variable displacement axial piston pumps with regulating system
Boom/Arm/Bucket circuit 31.4 MPa
Boom/Arm/Bucket (with Power Boost) 34.3 MPa
Swing circuit 29.4 MPa
Travel circuit 34.3 MPa
Name CX490D
Maximum swing speed 9.1 min-¹
Swing torque 150,000 Nm
Name CX490D
Suction filter 105 μm
Return filter 6 μm
Pilot line filter 8 μm
Name CX490D
Travel motor Variable displacement axial piston motor (Automatic travel speed shifting)
Max travel speed 5.3 km/h
Low travel speed 3.2 km/h
Gradeability 35° (70%)
Drawbar pull 339 kN
Name CX490D
Alternator 50 Amp
Starter motor 5.5 kW (7.4 hp)
Battery 2 × 12 V 128 Ah / 5 HR
Name CX490D
Number of track rollers (each side) 9
Number of shoes (each side) 50
Type of shoe Triple grouser shoe
Name CX490D
Fuel tank 650 L
Hydraulic system 460 L
Cooling system
Engine Crank Case
