CX130C

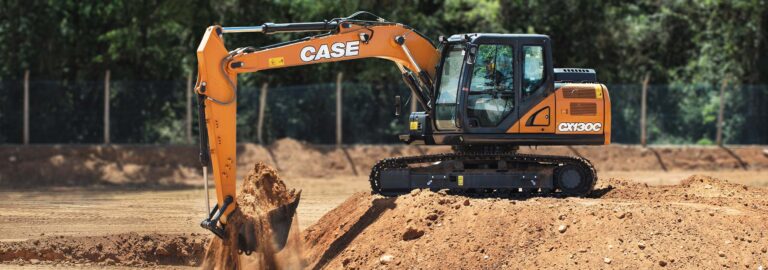

CASE Excavator CX130C
Model Comparison
- 73 kW (97.9 hp)
- 92.2 kW (123.6 hp)
- 122 kW (163.6 hp)
- 140 kW /188 hp @ 2000 min-¹
- 180 kW /241 hp @ 2000 min-¹
- 200 kW /268 hp @ 2000 min-¹
- 270 kW (362.1 hp)
- 270 kW (362.1 hp)
Product Features
1
2
3
4
Advanced Hydraulic System with Energy Saving Controls
The C-Series is equipped with an advanced hydraulic system that integrates five energy-saving functions, reducing fuel consumption by up to 10%. Intelligent controls such as Boom Economy Control, Swing Relief Control, and Auto Energy Safe optimise hydraulic performance while conserving energy. Operators can monitor fuel efficiency in real time through the ECO Gauge display, promoting smarter, more sustainable operation.
| Name | CX130C |
|---|---|
| Engine Type | Water-cooled, 4-cycle diesel, 6-cylinder in line, electronically controlled, high pressure common rail system, turbocharger with air cooled intercooler, without cooling fan , SCR system. |
| Model | ISUZU GJ-4JJ1X |
| Bore/Stroke | 95.4 × 104.9 mm |
| Displacement | 3 l |
| Horsepower | 73 kW (97.9 hp) |
| Maximum torque | 346 Nm @ 1500 min-¹ |
| Name | CX130C |
|---|---|
| Max oil flow | 2 × 129 l/min |
| Type | 2 variable displacement axial piston pumps with regulating system Working circuit pressure |
| Boom/Arm/Bucket circuit | 34.3 MPa |
| Boom/Arm/Bucket (with Power Boost) | 36.3 MPa |
| Swing circuit | 27.9 MPa |
| Travel circuit | 34.3 MPa |
| Name | CX130C |
|---|---|
| Maximum swing speed | 14.1 min-¹ |
| Swing torque | 33,000 Nm |
| Name | CX130C |
|---|---|
| Suction filter | 105 μm |
| Return filter | 6 μm |
| Pilot line filter | 8 μm |
| Name | CX130C |
|---|---|
| Travel motor | Variable displacement axial piston motor (automatic travel speed shifting) |
| Max travel speed | 5.6 km/h |
| Low travel speed | 3.4 km/h |
| Gradeability | 35° (70%) |
| Drawbar pull | 116 kN |
| Name | CX130C |
|---|---|
| Alternator | 50 Amp |
| Starter motor | 4 kW (5.4 hp) |
| Battery | 2 × 12 V 72 Ah / 5 HR |
| Name | CX130C |
|---|---|
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 43 |
| Type of shoe | Triple grouser shoe |
| Name | CX130C |
|---|---|
| Fuel tank | 260 L |
| Hydraulic system | 157 L |
| Cooling system | 18.2 L |
| Engine Crank Case | 17 L |
