Z482

Model Comparison Product Features Specifications

Construction

Engines

Super Mini Series

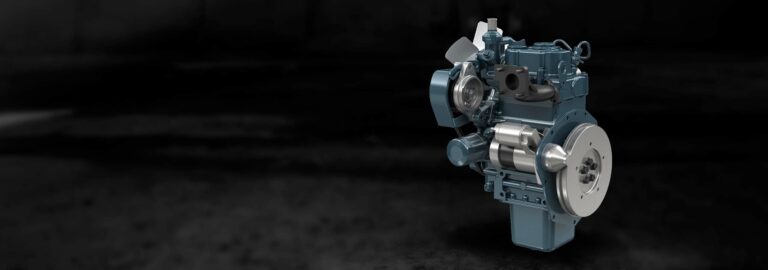

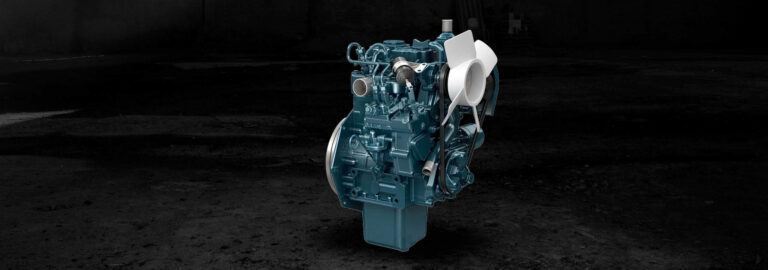

The Kubota Z482 is a vertical, water-cooled, 2-cylinder, 4-cycle IDI diesel engine with a capacity of 10.9HP at 3600RPM. Don’t mistake its compact size, this is one of the most hardworking, efficient and cleanest running diesel engines on the market!

Model Comparison

Finance Offers

Download Brochure

9.3 kw
3.4 kw
4.1 kw

Product Features

Small & Compact design

World’s smallest, multi-cylinder, high-power density diesel engine.

Small & Compact design

World’s smallest, multi-cylinder, high-power density diesel engine.

Specifications

Highlight differences

Download Brochure

General

Name	Z482	Z482-BG 1500	Z482-BG 1800
Cooling Type	Water Cooled	Water Cooled	Water Cooled
Orientation	Vertical	Vertical	Vertical
Fuel Type	Diesel	Diesel	Diesel
Cylinders	2	2	2
Stroke	68 mm	68 mm	68 mm
Displacement	479 cc	479 cc	479 cc
Combustion System	E-TVCS Indirect Injection	E-TVCS Indirect Injection	E-TVCS Indirect Injection
Intake System	Naturally Aspirated	Naturally Aspirated	Naturally Aspirated
Starting System	Electric	Electric	Electric
Speed Type	Variable	Fixed	Fixed

Output

Name	Z482	Z482-BG 1500	Z482-BG 1800
Net Intermittent Power	9.3 kw (12.5 hp)	3.4 kw (4.6 hp)	4.1 kw (5.5 hp)
Net Rated Speed	3,600 rpm	1,500 rpm	1,800 rpm
