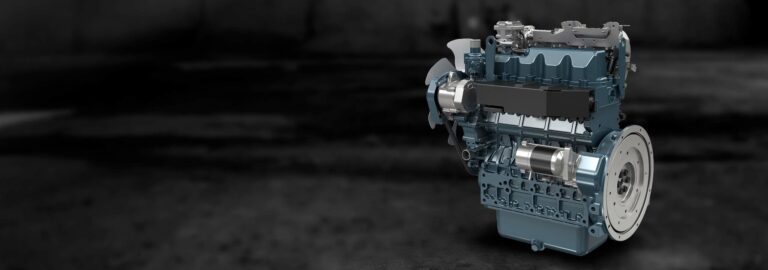

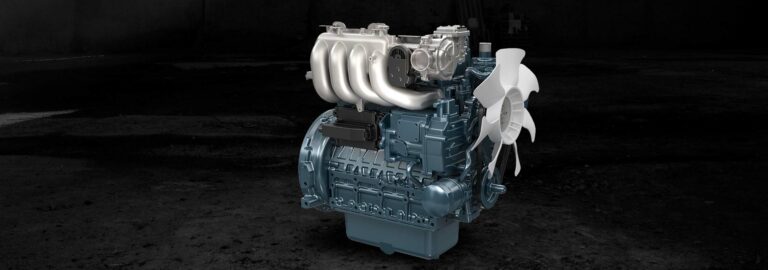

The Kubota WG2503-N-E3 is a 42 kW industrial, natural gas engine. Built to deliver reliable power 24/7 to the operation of wellheads in Australia’s remote and harsh outback. Direct spark ignitions means no distributor, providing less maintenance as well as increased reliability for mining operators. Testing shows Kubota WG engines will save operators 4% per year in fuel costs.

Model Comparison

Finance Offers

Download Brochure

3,600 rpm
2,700 rpm
2,700 rpm
2,600 rpm

Product Features

Zero maintenance valve timing control

Standard on Kubota WG2503 engines, the rugged helical front gear train is zero-maintenance, heavy-duty valve timing control. It is superior to timing belt or chain designs, which require regular maintenance and can lead to major engine failure. Water-Resistant Ignition-System Connectors. For trouble-free operation in all climates, the state-of-the-art ignition system includes tough, water-resistant connectors to ensure an easy startup, day after day.

Zero maintenance valve timing control

Specifications

Highlight differences

Download Brochure

General

Name	WG2503-Petrol	WG2503-Natural Gas
Cooling Type	Water Cooled	Water Cooled
Orientation	Vertical	Vertical
Fuel Type	Petrol	Natural Gas
Cylinders	4	4
Stroke	102.4 mm	102.4 mm
Displacement	2,491 cc	2,491 cc
Combustion System	Coil-on-plug	Coil-on-plug
Intake System	Naturally Aspirated	Naturally Aspirated
Starting System	Electric	Electric
Speed Type	Variable	Variable

Output

Name	WG2503-Petrol	WG2503-Natural Gas
Net Intermittent Power	45.5 kw (61.0 hp)	39.2 kw (52.6 hp)
Net Rated Speed	2,700 rpm	2,700 rpm
