V3800-T-BG 1500
/ V3800-T

V3800-T

Model Comparison Product Features Specifications
V3800-T previewV3800-T

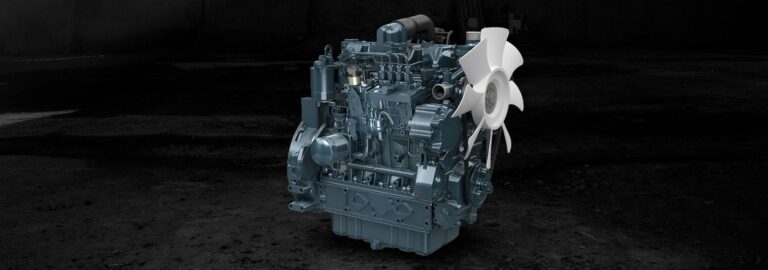

The Kubota V3800-T is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 82.2HP at 2600RPM. Heavy duty, reliable and exceptionally powerful, the V3800-T offers the added benefit of being exceptionally easy to maintain with a long service life.

Model Comparison

Finance Offers
Download Brochure
  • 43.3 kw
  • 70.6 kw

Product Features

kubota previewkubota
1
2
3
4

Higher output power

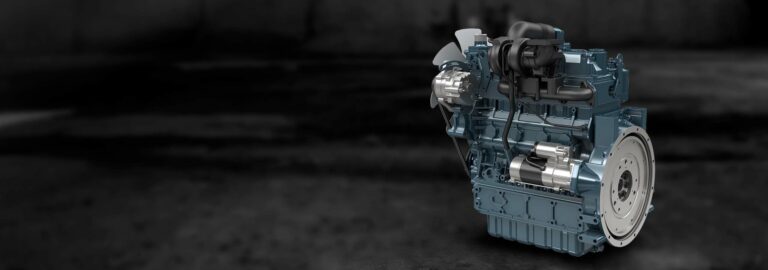

Kubota’s E-CDIS technology provides higher output power and torque rise, while offering exceptional fuel efficiency. 14% greater in displacement and 10% greater in output and torque rise than V3300.

Higher output power

Kubota’s E-CDIS technology provides higher output power and torque rise, while offering exceptional fuel efficiency. 14% greater in displacement and 10% greater in output and torque rise than V3300.

Specifications

Download Brochure
General
Name V3800-T-BG 1500 V3800-T
Cooling Type Water Cooled Water Cooled
Orientation Vertical Vertical
Fuel Type Diesel Diesel
Cylinders 4 4
Stroke 120 mm 120 mm
Displacement 3,769 cc 3,769 cc
Combustion System Direct Injection Direct Injection
Intake System Turbo Turbo
Starting System Electric Electric
Speed Type Fixed Variable
Name V3800-T-BG 1500 V3800-T
Net Intermittent Power 43.3 kw (58.1 hp) 70.6 kw (94.7 hp)
Net Rated Speed 1,500 rpm 2,600 rpm
