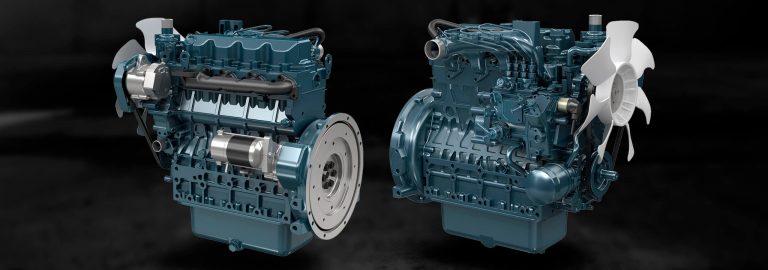

V1903

The Kubota V1903 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 34HP at 2800RPM. Featuring a built-in solenoid, low fan position and single side serviceability, the Kubota D1903 offers powerful performance, exceptional reliability and a long service life to meet almost any application.

Product Features

High power output

Kubota’s E-TVCS indirect injection system provides high power output and torque backup in a compact package.

High power output

Kubota’s E-TVCS indirect injection system provides high power output and torque backup in a compact package.

Specifications

Download Brochure

General

Name	V1903
Cooling Type	Water Cooled
Orientation	Vertical
Fuel Type	Diesel
Cylinders	4
Stroke	92.4 mm
Displacement	1,857 cc
Combustion System	E-TVCS Indirect Injection
Intake System	Naturally Aspirated
Starting System	Electric
Speed Type	Variable

Output

Name	V1903
Net Intermittent Power	29.1 kw (39.0 hp)
Net Rated Speed	2,800 rpm
