D1703

Model Comparison Product Features Specifications

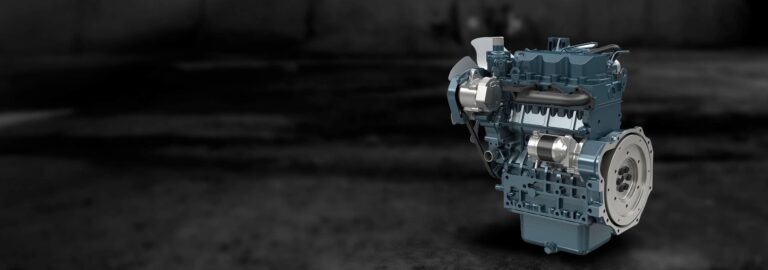

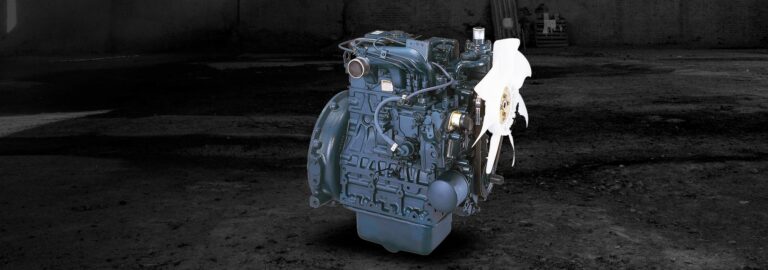

The Kubota D1703 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 30HP at 2800RPM. Featuring a built-in solenoid, low fan position and single side serviceability, the Kubota D1703 offers powerful performance, exceptional reliability and a long service life to meet almost any application.

Model Comparison

Finance Offers

Download Brochure

15 kw
25.7 kw

Product Features

High power output

Kubota’s E-TVCS indirect injection system provides high power output and torque backup in a compact package.

High power output

Kubota’s E-TVCS indirect injection system provides high power output and torque backup in a compact package.

Specifications

Highlight differences

Download Brochure

General

Name	D1703-BG 1500	D1703
Cooling Type	Water Cooled	Water Cooled
Orientation	Vertical	Vertical
Fuel Type	Diesel	Diesel
Cylinders	3	3
Stroke	92.4 mm	92.4 mm
Displacement	1,647 cc	1,647 cc
Combustion System	E-TVCS Indirect Injection	E-TVCS Indirect Injection
Intake System	Naturally Aspirated	Naturally Aspirated
Starting System	Electric	Electric
Speed Type	Fixed	Variable

Output

Name	D1703-BG 1500	D1703
Net Intermittent Power	15 kw (20.1 hp)	25.7 kw (34.5 hp)
Net Rated Speed	1,500 rpm	2,800 rpm
