D1105

Model Comparison Product Features Specifications

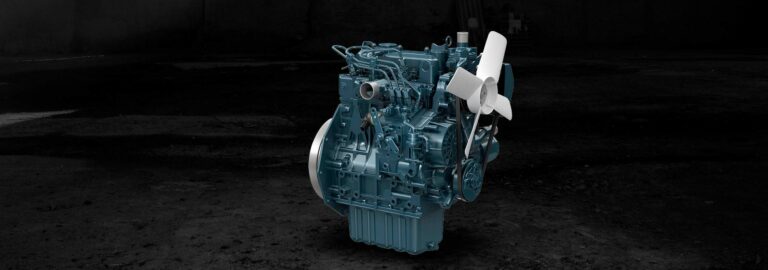

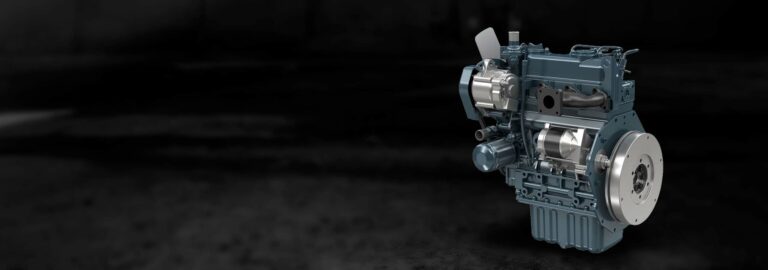

The Kubota D1105 is a vertical, water-cooled, four cycle diesel engine with a capacity of 25.1HP at 3000RPM. Lightweight, dependable and versatile, the Kubota D1105 is the ideal engine for applications where minimal noise and efficiency is a must.

Model Comparison

Finance Offers

Download Brochure

9.5 kw
18.7 kw

Product Features

Improved engine performance

Kubota’s E-TVCS technology creates optimum air/fuel mixture, significantly improving engine performance.

Improved engine performance

Kubota’s E-TVCS technology creates optimum air/fuel mixture, significantly improving engine performance.

Specifications

Highlight differences

Download Brochure

General

Name	D1105-BG 1500	D1105
Cooling Type	Water Cooled	Water Cooled
Orientation	Vertical	Vertical
Fuel Type	Diesel	Diesel
Cylinders	3	3
Stroke	78.4 mm	78.4 mm
Displacement	1,123 cc	1,123 cc
Combustion System	E-TVCS Indirect Injection	E-TVCS Indirect Injection
Intake System	Naturally Aspirated	Naturally Aspirated
Starting System	Electric	Electric
Speed Type	Fixed	Variable

Output

Name	D1105-BG 1500	D1105
Net Intermittent Power	9.5 kw (12.7 hp)	18.7 kw (25.1 hp)
Net Rated Speed	1,500 rpm	3,000 rpm
