EasyCut R Rear Mounted Disc Mowers

Model Comparison Product Features Specifications

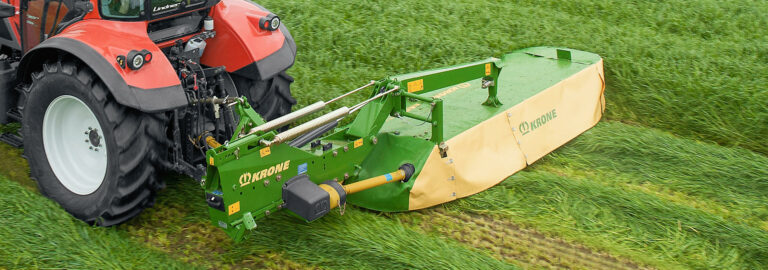

EasyCut R Rear Mounted Disc Mowers previewEasyCut R Rear Mounted Disc Mowers
With models ranging from 2.73 metres to 3.16 metres, the EasyCut R range is the ideal rear linkage mower for the commercial farmer or contractor. Compact, balanced and over the centre transport position provides excellent weight distribution and visibility for travelling between fields. Forming a compact combination with the tractor, they offer light pulling and excellent ground contouring on any terrain.

Model Comparison

Finance Offers
Download Brochure
  • 2,730 mm
  • 3,140 mm
  • 3,600 mm
  • 4,040 mm

Product Features

kubota previewkubota
1
2
3
4

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Specifications

Download Brochure
Dimensions & Weight
Name ECR280 ECR320 ECR360 ECR400
Working Width 2,730 mm 3,140 mm 3,600 mm 4,040 mm
Transport Height 3,500 mm 3,900 mm 4,000 mm 1,500 mm
Weight 780 kg 840 kg 1,040 kg 1,050 kg
Name ECR280 ECR320 ECR360 ECR400
PTO Min. 55 hp 70 hp 75 hp 90 hp
Discs 4 5 6 7
Drums 2 2 2 2
Rotation Direction B B B B
PTO Standard Speed 540 rpm 540 rpm 540 rpm 540 rpm
PTO Optional Speed (spare parts) 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm
Three-point Hitch Cat. II Cat. II Cat. II Cat. II and Cat. III
Hydraulic Spools 1 SA 1 SA 1 SA, 1 DA 1 SA, 1 DA
Work Rate Min. 3 ha/h 3.5 ha/h 4 ha/h 4.5 ha/h
Work Rate Max. 3.5 ha/h 4 ha/h 4.5 ha/h 5 ha/h
Name ECR280 ECR320 ECR360 ECR400
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlapon discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
DuoGrip Centre of Grip Suspension
Outer Curtain Support with Scrapper
Folding for Transport 100° Over Centre 100° Over Centre 124° Over Centre Rear Folding
Adjustable Mower Spring Suspension
PTO Shaft with Slip Clutch 2 Plate 4 Plate 4 Plate 4 Plate
Removable Blade Box
Brakeback System
Mechanical Ground Pressure Control Standard Standard Standard Standard
In-cab Hydraulic Adjustment of Ground Pressure Control Optional Optional Optional Optional
Cast Wear Protection Points Between Discs
Name ECR280 ECR320 ECR360 ECR400
Quick Change Blades
Disc Covers from 2022 Models 8 8 8 8
Right Swath Plate
6 Spline Yoke
21 Spline Yoke
