EasyWrap 150

EasyWrap 3PL Bale Wrapper

Model Comparison Product Features Specifications

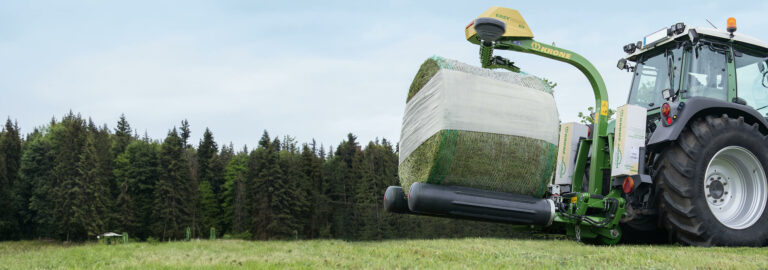

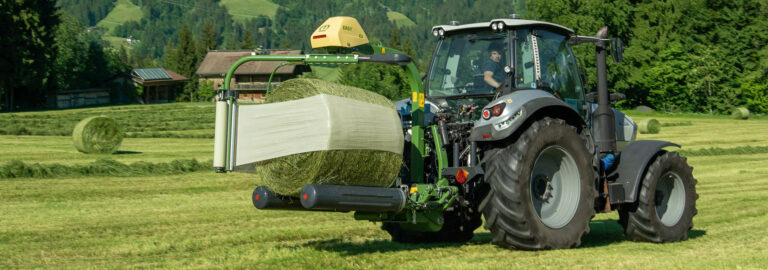

The Krone EasyWrap 150 Bale Wrapper is designed to easily and efficiently wrap bales up to 1600kg and 1.50 metres in diameter, thanks to its high-speed wrapping arm operating at 36rpm. The entire wrapping cycle, from picking up to depositing the wrapped bale is controlled automatically, semi-automatic or manual operation is also possible at any time. The EasyWrap 150 mounts via three-point linkage, both front and rear, it also attaches to wheeled loaders and telescopic materials handlers.

Model Comparison

Finance Offers

Download Brochure

36 RPM
40 RPM

Product Features

Three-point attachment

Attached in three-point rear linkage, EasyWrap 150 provides optimal weight distribution and great stability. For higher-power tractors, EasyWrap 150 can also be attached to the front linkage, telescopic and wheeled loaders.

Three-point attachment

Specifications

Download Brochure

Dimensions & Weight

Name	EasyWrap 150
Bale Width	1,000 mm
Bale Diameter	1,500 mm
Length (approx.)	2,349 mm
Height (approx.)	2,388 mm
Width (approx.)	1,430 mm
Bale Weight Max.	1,600 kg
Film Width	750 mm
Film Stretch Min.	55 %
Film Stretch Max.	70 %

Specifications

Name	EasyWrap 150
Hydraulic System	1 SA and 1RL
Oil Flow Min.	15 l/min
Oil Flow Max.	35 l/min
Attachment	3PL Front or Rear Mount
Electric Connector	3-pin Connector and InCab
Wrapping Speed Max.	36 RPM

Standard Options

Name	EasyWrap 150
Full Automatic Function
Two Large Driven Rollers
Two Large Driven Rollers
Single Arm Wrapper
Wrapping Arm with Integral Brake and Angle Sensor
Hydraulic Roller Control
Three Point Attachment	Cat III
Front End Bale Controlling Roll

Standard Extras

Name	EasyWrap 150
Counterweight
Bale Turner
Additional Bale Roll
Ground Roller
Film Roll Holder
Load Sensing Hydraulics
EasyLoad for Auto Program Start
Load Sensing Hydraulics
ISOBUS In Cab Monitor	D5500
