ECTC320CR
/ ECTC320CRS
/ ECTC320CV

EasyCut TC Centre Disc Mowers

Product Features Specifications
EasyCut TC Centre Disc Mowers previewEasyCut TC Centre Disc Mowers

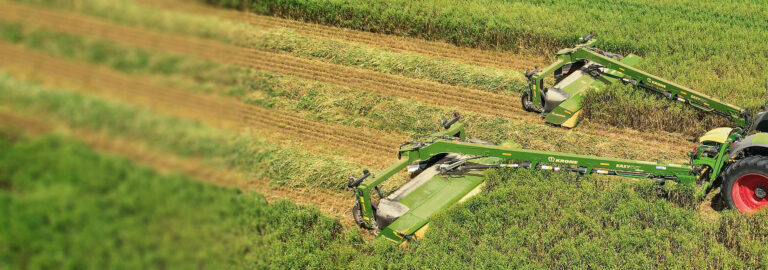

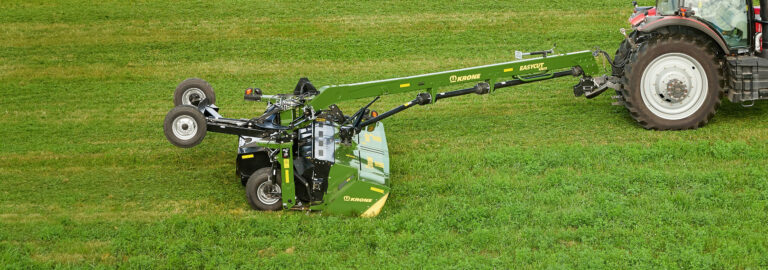

The Krone EasyCut TC range features a mid-mounted drawbar that offers maximum flexibility when operating the machine solo or in combination with a front mower. The trailed machines with a mid-mounted drawbar offer hydraulic side-shifting, running left or right behind the tractor. Krone’s EasyCut TC 400 and 500 mowers are packed with industry leading technology, available in steel roller conditioner, rubber roller conditioner, flail conditioner and non-conditioner models. The optional 3m transport kit allows operators to now change from transport mode to working mode in less than 30 seconds all without leaving the tractor cab. The ECTC 400 and 500 mowers are designed to handle the toughest of Australian conditions.

Product Features

kubota previewkubota
1
2
3
4
5

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Specifications

Download Brochure
Dimensions & Weight
Name ECTC320CR ECTC320CRS ECTC320CV
Working Width 3,160 mm 3,160 mm 3,160 mm
Transport Width 3,000 mm 3,000 mm 3,000 mm
Length 7,050 mm 7,050 mm 7,050 mm
Weight 2,450 kg 2,450 kg 2,450 kg
Tyre Size 15.0 / 55-17 / 10 PR 15.0 / 55-17 / 10 PR 15.0 / 55-17 / 10 PR
Name ECTC320CR ECTC320CRS ECTC320CV
PTO Min. 100 hp 100 hp 100 hp
Conditioner Type Polyurethane Roller M-Roll Steel V-flail
Drawbar Attachment Centre Centre Centre
Discs 5 5 5
Drums 2 2 2
Rotation Direction B B B
PTO Optional Speed 1,000 rpm 1,000 rpm 1,000 rpm
Hydraulic Spools 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA
Hitch Type Cat II Cat II N/A
Name ECTC320CR ECTC320CRS ECTC320CV
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlap on discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
Cast Wear Protection Points Between Discs
Lighting
Removable Blade Box for Storage
Flail Rotor – 640mm w/ Semi Swing Hardened V-Flail Tines
Name ECTC320CR ECTC320CRS ECTC320CV
Quick Change Blades
Twin Roller Drive
Spreading Vanes N/A N/A
Lower Link Cat II
Additional Drums with Wider Bar/Slat
21 Spline Yoke
