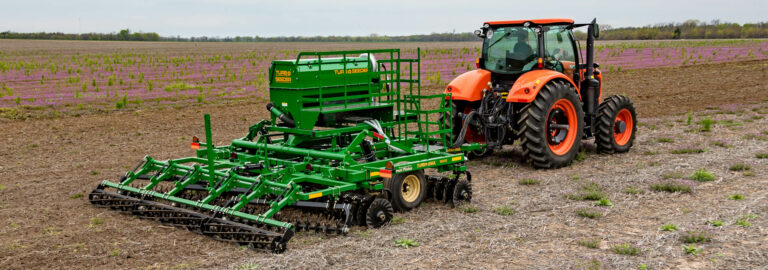

TurboMax Standard

Model Comparison Product Features Specifications

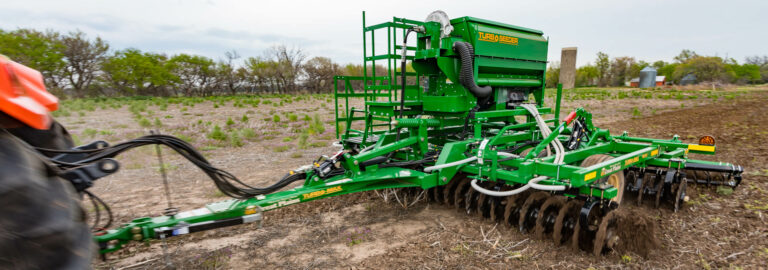

With hydraulically adjustable gangs that angle from 0-6°, the Great Plains Turbo-Max is the True Vertical Tillage machine that creates an ideal seedbed in the spring and fall. In the spring, keep the gangs straight to create a smooth seedbed for uniform emergence. In the fall, run gangs at an angle to size and cover more residue. For added efficiency, add a Turbo-Seeder™ to simultaneously plant cover crops and till your ground, or the Implement Command® System to monitor and control tillage on-the-go, from the cab.

Model Comparison

Finance Offers

Download Brochure

4,000 mm
4,780 mm
9,400 mm
12,040 mm

Product Features

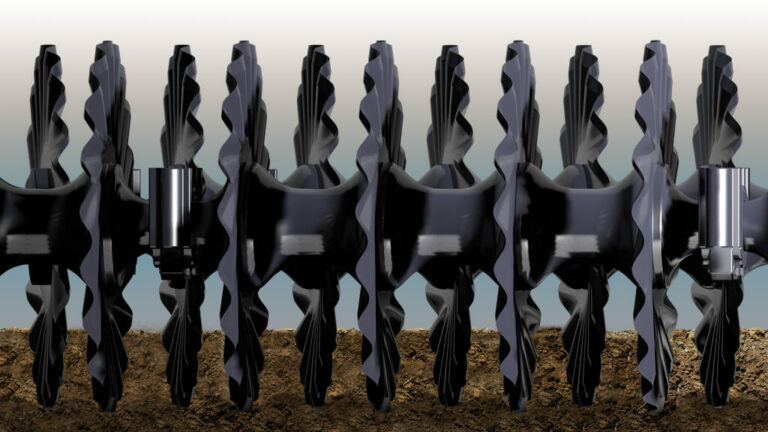

True Vertical Tillage

With 51cm Turbo Coulters spaced 19cm apart, Turbo‐Max provides truly vertical cutting without the shearing caused byconcave blades. Offset front and rear gangs achieve an effective residue cutting width of 9.5cm when running at 0°, which is recommended for seedbed preparation.

True Vertical Tillage

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	1200TM	1500TM	3000TM	4000TM
Transport Width	4,110 mm	4,720 mm	4,700 mm	550 mm
Transport Height	1,620 mm	1,620 mm	4,270 mm	4,300 mm
Tillage Width	4,000 mm	4,780 mm	9,400 mm	12,040 mm
Weight	4,082 kg	4,536 kg	10,297 kg	14,633 kg

Specifications

Name	1200TM	1500TM	3000TM	4000TM
Frame Design	Rigid	Rigid	Folding	Folding
Coulter Spacing	95 mm	95 mm	95 mm	76 mm
Tyres (Transport)	11L-15SL 12 PLY	11L-15SL 12 PLY	380/55R 16.5	440/55R 18
Tyres (Wing)			12.5x15 12 PLY	12.5 x 15 12 PLY
Min. PTO Required	115 hp	140 hp	285 hp	380 hp
Centre Section	4,270 mm	5,160 mm	3,290 mm	3,960 mm
Turbo Coulter Size	508 mm	508 mm	508 mm	508 mm
No. of Coulters	41	49	97	125

Standard Options

Name	1200TM	1500TM	3000TM	4000TM
Hitch Assembly with Manual Turnbuckle Levelling
Hitch Option	Cat 3 & 4 Single Tang or Clevis	Cat 3 & 4 Single Tang or Clevis	Cat 3 & 4 Single Tang or Clevis	Cat 3 & 4 Single Tang or Clevis
Hitch Assembly with Hydraulic Turnbuckle Levelling
Rolling Harrow & Reel
680kg Frame Weight kit	1	1	2	2

Standard Features

Name	1200TM	1500TM	3000TM	4000TM
Hydraulic Wing Weight Transfer
High Tensile Tubing
0⁰ to 6⁰ Hydraulic Gang Angle Adjustment (front & rear)
508mm x 6mm Turbo Blades on 190mm Spacing
Rubber Mounted Gang Bearings
Re‐lube Rubber Cushioned Ring Bearing
Heavy‐duty Triple Seal Bearings
Extra Heavy Duty C Shank
Nickel Chrome Cylinder Rods
Tractor Hydraulic Bypass System
Wing Flex: 10⁰ Down, Unlimited Up
Walking Tandem on Centre Transport
Dual Wing Tyres
Constant Level Hitch
Single Tang Cast Hitch
Heavy Duty Jack
Single Point Depth Adjustment
Safety Light Kit
SMV Sign and Safety Chain
Colour Coded Hydraulic Hoses
Maintenance Free Bearing
