TurboMax Narrow

Model Comparison Product Features Specifications

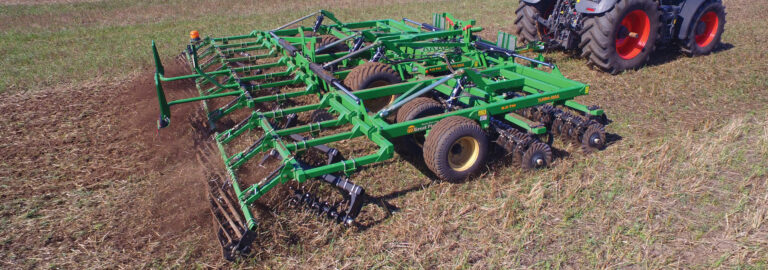

TurboMax Narrow previewTurboMax Narrow
True vertical tillage has become the standard for yield‐boosting seedbed preparation. The industry‐leading Turbo‐Max offers agronomic benefits of both spring vertical tillage and Autumn residue management. Turbo‐Max blades are spaced 19cm apart on two rows of coulter gangs. Rear gangs offset the front gangs, splitting the blade spacing to 9.5cm for superior residue sizing in one pass. Gang angle is hydraulically adjustable on‐the‐go from 0° to 6°, offering greater flexibility to match changing field conditions.

Model Comparison

Finance Offers
Download Brochure
  • 3,000 mm
  • 6,000 mm
  • 8,000 mm

Product Features

kubota previewkubota
1
2
3
4

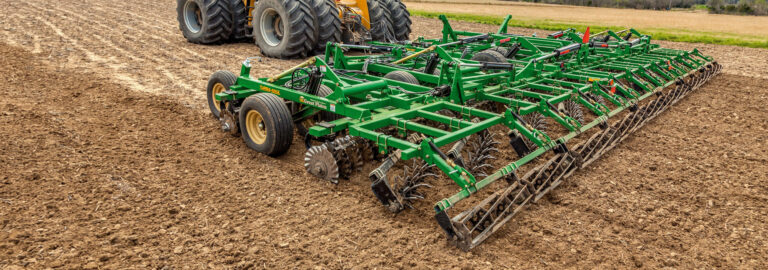

True Vertical Tillage

True Vertical Tillage

With 51cm Turbo Coulters spaced 19cm apart, Turbo‐Max provides truly vertical cutting without the shearing caused byconcave blades. Offset front and rear gangs achieve an effective residue cutting width of 9.5cm when running at 0°, which is recommended for seedbed preparation.

True Vertical Tillage

With 51cm Turbo Coulters spaced 19cm apart, Turbo‐Max provides truly vertical cutting without the shearing caused byconcave blades. Offset front and rear gangs achieve an effective residue cutting width of 9.5cm when running at 0°, which is recommended for seedbed preparation.

True Vertical Tillage

Specifications

Download Brochure
Dimensions & Weight
Name 3.0M-TM 6.0M-TM 8.0M-TM
Transport Width 3,000 mm 3,000 mm 3,000 mm
Tillage Width 3,000 mm 6,000 mm 8,000 mm
Transport Height 1,600 mm 3,000 mm 4,000 mm
Transport Length 8,700 mm 8,700 mm 8,700 mm
Weight 3,740 kg 9,650 kg 10,950 kg
Name 3.0M-TM 6.0M-TM 8.0M-TM
Frame Design Rigid Folding Folding
Coulter Spacing 95 mm 95 mm 95 mm
Tyre Size (Transport) 340/60R 16.5 550/4.5-22.5 20pr 550/4.5-22.5 20pr
Tyre Size (Wing) 15.0/55-17 14pr 15.0/55-17 14pr
Min. PTO Required 100 hp 200 hp 260 hp
Turbo Coulter Size 508 mm 508 mm 508 mm
No. of Coulters 31 65 85
Name 3.0M-TM 6.0M-TM 8.0M-TM
Hitch Assembly with manual turnbuckle levelling N/A
Hitch Option Cat 3 Ring Cat 3 Ring Cat 4 Ring
Rolling Harrow & Reel
Qty. of 680kg Frame Weight kit 1 2 2
Name 3.0M-TM 6.0M-TM 8.0M-TM
Hydraulic Wing Weight Transfer
High Tensile Tubing
0⁰ to 6⁰ Hydraulic Gang Angle Adjustment (front & rear)
508mm x 6mm Turbo Blades on 190mm Spacing
Maintenance Free Heavy‐duty Triple Seal Bearings
Extra Heavy Duty C Shank
Nickel Chrome Cylinder Rods
Tractor Hydraulic Bypass System
Wing Flex: 10⁰ Down, Unlimited Up
Single Tang Cast Hitch
Heavy Duty Jack
Single Point Depth Adjustment
Safety Light Kit
SMV Sign and Safety Chain
Colour Coded Hydraulic Hoses
