1150L

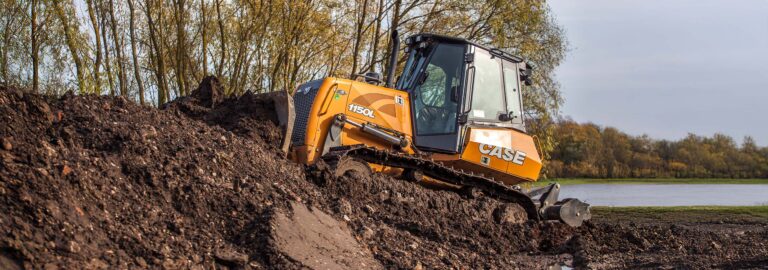

Case Crawler Dozer 1150L

CASE Crawler Dozers are designed for precision grading and heavy duty earthmoving applications. The FPT Industrial engine has been developed for powerful low down torque characteristics, ideal for dozing applications. The hydrostatic transmission delivers traction force to each track independently, allowing you to continue to push at full power throughout the turn, giving you total control for fine grading and slope works. To grant maximum versatility in all working conditions, all CASE dozers are equipped as standard with PAT blades.

Model Comparison

Finance Offers

Download Brochure

97 kW (130.1 hp)
116 kW (155.6 hp)

Product Features

Drawbar pulling leadership

The hydrostatic transmission and common rail engine deliver best-in-class pulling capacity and controllability. All the working parameters can be customised by the driver for excellent machine controllability and faster cycle times.

Drawbar pulling leadership

Specifications

Download Brochure

Engine

Name	1150L
Model	FPT Industrial Engine F4HE9684K
Engine Displacement	6.7 L
Cylinders	6
Emissions Certification	N/A
Fuel System	Direct common rail
Cooling Type	Liquid
Rated Engine Speed	2,200 rpm
Gross Horsepower	97 kW (130.1 hp)
Net Horsepower	88 kW (118.0 hp)
Peak Torque	589 Nm

Drivetrain

Name	1150L
Transmission Type	Single lever control electronic tracking
Steering Type	Hydrostatic
Max Drawbar Pull	214 kN
Travel Speed – Forward	9.7 km/h
Travel Speed – Reverse	9.7 km/h

Electrical

Name	1150L
Alternator	65 Amp
Battery	2X12 V in series, maintenance free, 750 A CCA at -18°

Dimensions and Weight

Name	1150L
Operating Weight	13,625 kg
Height	2,882 mm
Ground Clearance	379 mm
Overall Length	5,973 mm
Width over tracks	3,050 mm

Hydraulics

Name	1150L
Pump flow	132 L/min

Blade

Name	1150L
Variable blade pitch - adjustable	55° to 60°
Lift speed - per second	483 mm
Cutting edge	Reversible, replaceble
Width	200 mm
Length	2,158 mm
Thickness	19.1 mm
