Coulterbar CB2000F Series

Model Comparison Product Features Specifications

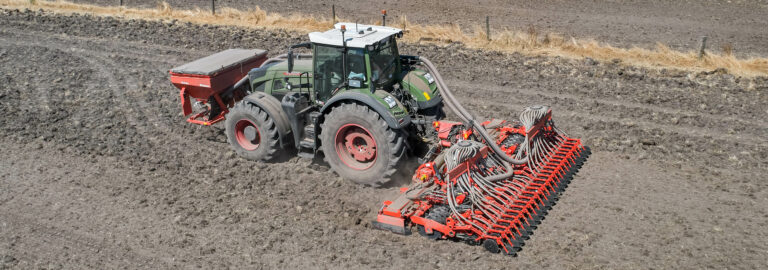

The modular structure of the Kubota CB2000F Series Coulterbar Seed Drill ensures even weight distribution across the set-up, and efficient operation thanks to the quick coupling system. The CB2000F drill also works in seamless combination with the SH1650 Series Front Hopper, for maximum tractor balance.

Model Comparison

Finance Offers

Download Brochure

Product Features

Versatile Size

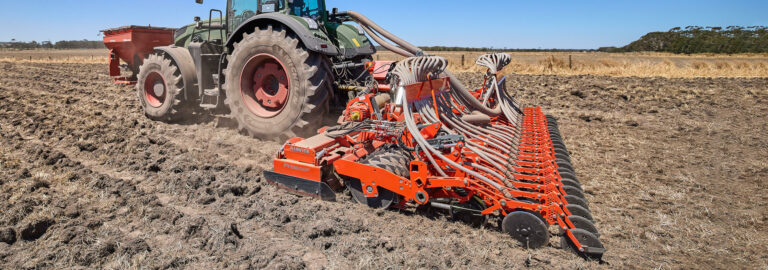

With working widths of either 5 m or 6 m and a transport width of just 3 m, the CB2000F Series coulterbar is productive in the field and nimble on the road.

Versatile Size

With working widths of either 5 m or 6 m and a transport width of just 3 m, the CB2000F Series coulterbar is productive in the field and nimble on the road.

Specifications

Highlight differences

Download Brochure

Dimensions

Name	CB2500F	CB2600F
Working Width	5 m	6 m
Transport Width	3 m	3 m

Specifications

Name	CB2500F	CB2600F
Number of Sowing Rows	40	48
Sowing Row Spacing	125 mm	125 mm
Row Unit Model	CX-II Disc Opener Mounted on a Big Dimensioned Cast Iron Arm w/Press Wheel	CX-II Disc Opener Mounted on a Big Dimensioned Cast Iron Arm w/Press Wheel
Furrow Steel Cutting Disc Size	325 mm	325 mm
Furrow Flex Disc Size	250 mm	250 mm
Press Wheel Size w/Scraper	250 x 42 mm	250 x 42 mm
Max. Row Unit Down Pressure - From the Cab	35 kg	35 kg
Maintenance Free Bearings
Hydraulic Coulter Pressure Adjustment from Tractor Cab
Hydraulic Coulter Bar Lifting from Tractor Cab
Centralised Sowing Depth Adjusted by Hydraulic Cylinder
Number of Distibutor Heads	2	2
Size of Distributor Head Pipe	100 mm	100 mm
Coulterbar Quick-Fit Couplings and Fittings for Removal
Electric Control Box for Hydraulic Functions
Required Tractor Hydraulics	1 DA	1 DA
Road Lighting
