V150XC-2
/ V180XC-2
/ CV150XC-2
/ V150XC Plus
/ CV150XC Plus

Comprima Series Round Balers

Model Comparison Product Features Specifications

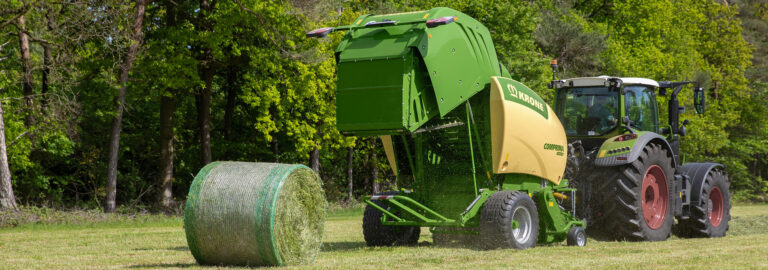

Comprima Series Round Balers previewComprima Series Round Balers
Thanks to the NovoGrip chain and slat conveyor and an extremely powerful 2.15 metre EasyFlow pick-up, the Comprima series of round balers are capable of baling all types of crops at high densities. All Comprima models feature the XCut cutting system featuring three rows of tines and a massive 53 cm diameter rotor with the capacity to provide consistent crop flow and precision cuts while spreading the material across the full width of the feed chamber. All Comprima models feature the XCut cutting system featuring three rows of tines and a massive 53 cm diameter rotor. This system provides consistent crop flow and precision cuts while spreading the material across the full width of the feed chamber. The Comprima CF 155 operates with a semi-variable bale chamber, producing dense and tidy bales between 1.25 and 1.50 metres in diameter in 5cm increments by refitting two pins. The Comprima CV models come equipped with a powerful and efficient double wrapper. The wrapping table forms a deep cradle and has large guide rollers on the sides. This ensures the bale is consistently rolled during the wrapping process, even on inclines.

Model Comparison

Finance Offers
Download Brochure
  • 70 hp
  • 80 hp
  • 100 hp
  • 70 hp
  • 100 hp

Product Features

kubota previewkubota
1
2
3
4

EasyFlow

The Comprima Series EasyFlow camless pickup features a v shaped 2.15m EasyFlow pick-up. Double tines gather the material effectively and feed it consistently to the feed rotor and rotor cutter. In rough terrain, the spring-loaded EasyFlow provides perfect ground contouring. The EasyFlow system is camless, resulting in a simple design with fewer moving parts, less wear, and quiet running. The tines are particularly powerful and hard-wearing, narrowly spaced at 55 mm, they're capable of picking up heavy crops thoroughly and without contamination.

EasyFlow

The Comprima Series EasyFlow camless pickup features a v shaped 2.15m EasyFlow pick-up. Double tines gather the material effectively and feed it consistently to the feed rotor and rotor cutter. In rough terrain, the spring-loaded EasyFlow provides perfect ground contouring. The EasyFlow system is camless, resulting in a simple design with fewer moving parts, less wear, and quiet running. The tines are particularly powerful and hard-wearing, narrowly spaced at 55 mm, they're capable of picking up heavy crops thoroughly and without contamination.

Comprima Series Round Balers in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Comprima Series Round Balers.

First Class Field Work previewFirst Class Field Work

First Class Field Work

DTE Issue 4

Specifications

Download Brochure
Dimensions & Weight
Name V150XC-2 V180XC-2 CV150XC-2 V150XC Plus CV150XC Plus
Length 4,995 mm 5,295 mm 7,240 mm 4,995 mm 7,660 mm
Height 2,990 mm 3,150 mm 3,080 mm 2,990 mm 2,999 mm
Width 2,610 mm 2,610 mm 2,960 mm 2,610 mm 2,990 mm
Camless Pick-up Work Width 2,150 mm 2,150 mm 2,150 mm 2,150 mm 2,150 mm
Machine Weight 4,140 kg 4,320 kg 6,600 kg 4,140 kg 7,500 kg
Tyre Size 500 / 50-17 10PR 500 / 50-17 10PR 500 / 55-20 12PR 500 / 55-20 12PR 600 / 50 R22.5
Name V150XC-2 V180XC-2 CV150XC-2 V150XC Plus CV150XC Plus
Bale Width & Diameter 1200 x 900-1500 mm 1200 x 900-1800 mm 1200 x 900-1500 mm 1200 x 900-1500 mm 1200 x 900-1500 mm
Minimum PTO 70 hp 80 hp 100 hp 70 hp 100 hp
Tine Rows 5 5 5 5 5
Multicut Cutter 17 Knives N/A N/A
Blades 17 17 N/A 17 N/A
Minimum Blade Spacing 64 mm 64 mm 64 mm 64 mm 64 mm
Drop Floor (to clear blockages) N/A N/A
Rotor Diameter 530 mm 530 mm 530 mm 530 mm 530 mm
Driveshaft Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Hydraulic Couplers 2 SA – Free Return Line 2 SA – Free Return Line 1 SA 2 SA – Free Return Line LS and 1 SA
Mechanical Hard / Soft Core Adjustment N/A N/A
Name V150XC-2 V180XC-2 CV150XC-2 V150XC Plus CV150XC Plus
Novogrip Belt and Slat Elevator N/A N/A
Camless Pick-up "EasyFlow" Straight Tine Formation N/A N/A
Electric Baling Pressure Valve
PTO Wide Angle with Cam Clutch
Roller Crop Guard
Automatic Chain Lubrication
Film Wrapping Unit (500mm and 750mm rolls) N/A N/A
TIM 1.0 Baler Automation Option Option N/A Option N/A
Name V150XC-2 V180XC-2 CV150XC-2 V150XC Plus CV150XC Plus
Single Axel Yes with Brakes
Tandem Axle Option Option With Hydraulic Brakes Option with Hydraulic Brakes With Hydraulic Brakes
Net Wrap System
Double System Net and Film Option Option Option Option
LED Work Lights
IsoBus Ready
Comfort ECU Job Computer CCI1800 CCI1800 CCI 1200 CCI1800 CCI 1200
Retrofit STW Power Harness for Non Isobus Tractor
Safety Chain
Bale Kicker
Towing Hitch 40 / 50 for Bottom Hitch
