CD2401T
/ CD2501T
/ CD2601T
/ CD2701T

Compact Disc CD2001T Series

Model Comparison Product Features Specifications

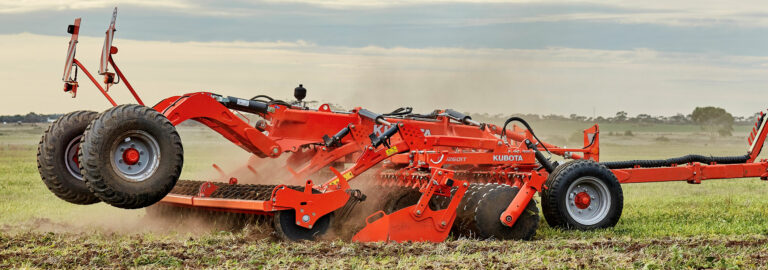

Compact Disc CD2001T Series previewCompact Disc CD2001T Series
Stubble cultivation is vital in conservation tillage: it incorporates weed and volunteer cereal seeds into the soil with intensive mixing and promotes germination for more efficient subsequent treatment. The even incorporation of straw is a key factor for seed germination. The Kubota CD2001T Series of disc cultivators is ready for shallow and deep cultivation and straw mixing. The CD2001T shows excellent performance with large amounts of residue (straw, intermediate green crops etc.) thanks to its small notched conical discs.

Model Comparison

Finance Offers
Download Brochure
  • 4 m
  • 5 m
  • 6 m
  • 7 m

Product Features

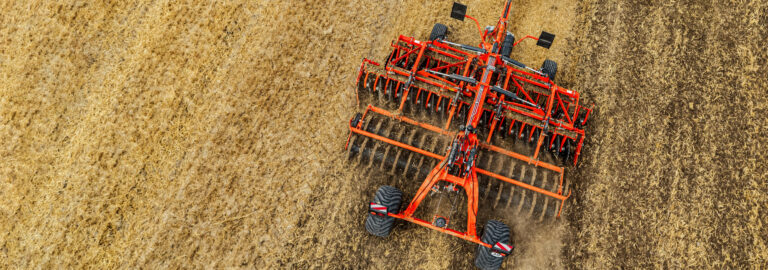

Available in working widths of 4 m to 7 m, the semi-mounted Kubota CD2001T Series is ready for high performance. Linked to the lifting arms, the CD2001T can be driven by medium-sized tractors even when equipped with heavier rollers like the Actipack. Individual adjustments are easily done, mostly by hydraulics from the tractor cab (depth adjustment, folding/unfolding, spacer lifting). A hydraulic lock prevents unforeseen unfolding, and the strong carriage and 2.75 m width ensure safe road transport. For additional stability on the road, the CD2001T is equipped with hydraulic suspension as standard.

kubota previewkubota
1
2
3
4
5

Disc Arms and Discs

The CD2001T Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

Disc Arms and Discs

The CD2001T Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

Specifications

Download Brochure
Dimensions & Weight
Name CD2401T CD2501T CD2601T CD2701T
Working Width 4 m 5 m 6 m 7 m
Transport Width 2.75 m 2.75 m 2.75 m 2.75 m
Weight w/Cage Roller 4,126 kg 4,546 kg 4,992 kg 5,380 kg
Weight w/ActiPack Roller 4,574 kg 5,124 kg 5,668 kg 6,215 kg
Name CD2401T CD2501T CD2601T CD2701T
Min. Power Required PTO 150 hp 170 hp 220 hp 250 hp
Max. Power Allowed PTO 250 hp 300 hp 350 hp 400 hp
Linkage Cat III – 2 Point Swivel Hitch Cat III – 2 Point Swivel Hitch Cat III – 2 Point Swivel Hitch Cat III – 2 Point Swivel Hitch
Hydraulic Valves Required 3 DA (Fold, Transport Wheels, Depth) 3 DA (Fold, Transport Wheels, Depth) 3 DA (Fold, Transport Wheels, Depth) 3 DA (Fold, Transport Wheels, Depth)
Name CD2401T CD2501T CD2601T CD2701T
Disc Diameter and Thickness 600 x 6 mm 600 x 6 mm 600 x 6 mm 600 x 6 mm
No. of Discs 32 40 48 56
Disc Spacing 250 mm 250 mm 250 mm 250 mm
Lateral Disc Gang Adjustment Yes (by Bolt Crank) Yes (by Bolt Crank) Yes (by Bolt Crank) Yes (by Bolt Crank)
Conical Heat Treated Long Life Discs w/Small Notches
Maintenance Free Disc Arm and Double Roller Oblique Bearing Assembly
Bearing Hub Seals 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side
Disc Hub Shaft Size 35 mm dia. 35 mm dia. 35 mm dia. 35 mm dia.
Ideal Working Depth 30 – 150 mm 30 – 150 mm 30 – 150 mm 30 – 150 mm
Disc Arm Protection Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System
Ideal Working Speed – Conditions Dependant 10 – 20 km/h 10 – 20 km/h 10 – 20 km/h 10 – 20 km/h
Inter Gang Distance 900 mm 900 mm 900 mm 900 mm
Wing Frame Box Section Size 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm
Depth Control By Rear Roller By Rear Roller By Rear Roller By Rear Roller
Depth Control Adjustment Hydraulic Hydraulic Hydraulic Hydraulic
Rear Roller Equipment Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm
Seed Box Fitment Possible
2 Year Factory Machine Warranty
Underbeam Clearance 794 mm 794 mm 794 mm 794 mm
Central Frame Size 300 x 200 x 10 mm 300 x 200 x 10 mm 300 x 200 x 10 mm 300 x 200 x 10 mm
Name CD2401T CD2501T CD2601T CD2701T
Rear Levelling Finger Harrows
Adjustable Side Deflector Plates
Foldable Side Deflector Plates For Transport
Front Depth Wheels w/Hydraulic Adjustment Option Option
Drawbar Extension - 0.85m Option Option
Wider Rear Axle - 400mm
