CD2401F
/ CD2501F
/ CD2601F

Compact Disc CD2001F Series

Model Comparison Product Features Specifications

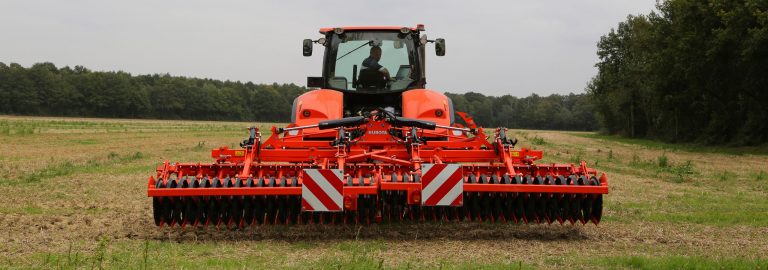

Compact Disc CD2001F Series previewCompact Disc CD2001F Series
Stubble cultivation is vital in conservation tillage: it incorporates weed and volunteer cereal seeds into the soil with intensive mixing and promotes germination for more efficient subsequent treatment. The even incorporation of straw is a key factor for seed germination. The Kubota CD2001F Series of disc cultivators is ready for shallow or deep cultivation and straw mixing. The CD2001F shows excellent performance with large amounts of residue (straw, intermediate green crops etc.) thanks to its small notched conical discs.

Model Comparison

Finance Offers
Download Brochure
  • 4 m
  • 5 m
  • 6 m

Product Features

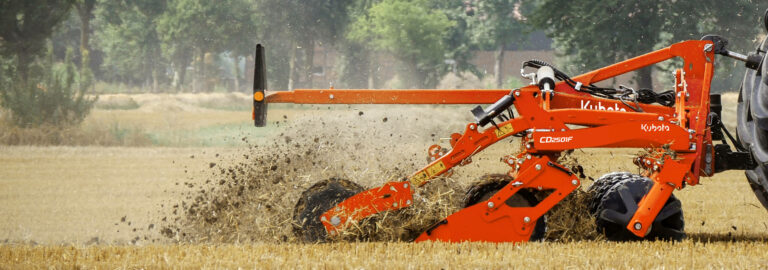

The Kubota CD2001F Series Compact Disc has a strong frame design and light weight, making it easy to lift and resulting in reduced soil compaction. With user-friendly settings, it’s easy to operate and has good levelling and controlled soil flow.

kubota previewkubota
1
2
3
4
5

Disc Arms and Discs

The CD2001F Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

Disc Arms and Discs

The CD2001F Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

Specifications

Download Brochure
Dimensions & Weight
Name CD2401F CD2501F CD2601F
Working Width 4 m 5 m 6 m
Transport Width 2.55 m 2.55 m 2.55 m
Weight w/Cage Roller 2,694 kg 3,130 kg 3,609 kg
Weight w/ActiPack Roller 3,206 kg 3,772 kg 4,375 kg
Name CD2401F CD2501F CD2601F
Min. Power Required PTO 150 hp 170 hp 200 hp
Max. Power Allowed PTO 250 hp 280 hp 300 hp
Linkage Cat III Cat III Cat III
Hydraulic Valves Required 2 DA (Fold, Depth) 2 DA (Fold, Depth) 2 DA (Fold, Depth)
Name CD2401F CD2501F CD2601F
Disc Diameter and Thickness 600 x 6 mm 600 x 6 mm 600 x 6 mm
No. of Discs 32 40 48
Disc Spacing 250 mm 250 mm 250 mm
Lateral Disc Gang Adjustment Yes (by Bolt Crank) Yes (by Bolt Crank) Yes (by Bolt Crank)
Conical Heat Treated Long Life Discs w/Small Notches
Maintenance Free Disc Arm and Double Roller Oblique Bearing Assembly
Bearing Hub Seals 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side
Disc Hub Shaft Size 35 mm dia. 35 mm dia. 35 mm dia.
Ideal Working Depth 30 – 150 mm 30 – 150 mm 30 – 150 mm
Disc Arm Protection Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System
Ideal Working Speed – Conditions Dependant 10 – 20 km/h 10 – 20 km/h 10 – 20 km/h
Inter Gang Distance 900 mm 900 mm 900 mm
Wing Frame Box Section Size 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm
Depth Control By Rear Roller By Rear Roller By Rear Roller
Depth Control Adjustment Hydraulic Hydraulic Hydraulic
Rear Roller Equipment Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm
Seed Box Fitment Possible
2 Year Factory Machine Warranty
Underbeam Clearance 794 mm 794 mm 794 mm
Central Frame Size 200 x 200 x 10 mm 200 x 200 x 10 mm 200 x 200 x 10 mm
Name CD2401F CD2501F CD2601F
Rear Levelling Finger Harrows
Adjustable Side Deflector Plates
