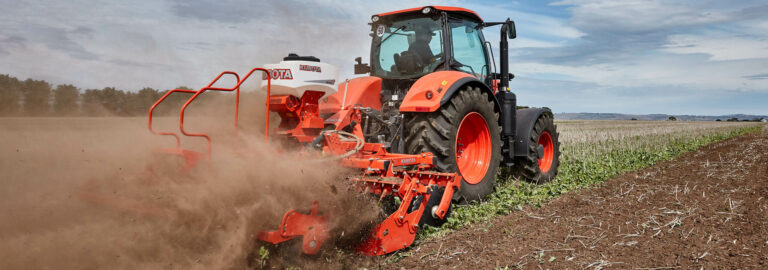

Compact Disc CD2001 Series
Model Comparison
- 3 m
- 3.5 m
- 4 m

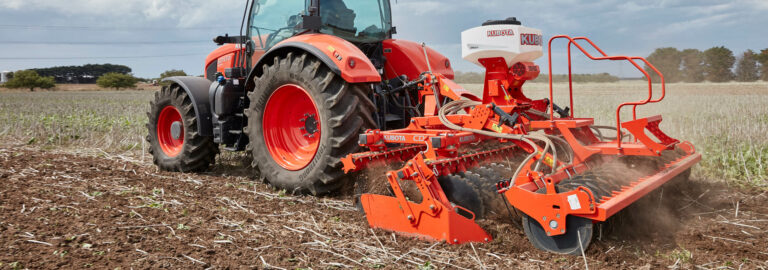

Product Features
The Kubota CD2001 Series has a strong frame design and light weight, making it easy to lift and resulting in reduced soil compaction. With user-friendly settings, it’s easy to operate and has good levelling and controlled soil flow.
Disc Arms and Discs
The CD2001 Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures and high working speeds.
Compact Disc CD2001 Series in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Compact Disc CD2001 Series.
| Name | CD2301 | CD2351 | CD2401 |
|---|---|---|---|
| Working Width | 3 m | 3.5 m | 4 m |
| Transport Width | 3 m | 3.5 m | 4 m |
| Weight w/Cage Roller | 1,676 kg | 1,857 kg | 2,239 kg |
| Weight w/ActiPack Roller | 2,068 kg | 2,312 kg | 2,672 kg |
| Name | CD2301 | CD2351 | CD2401 |
|---|---|---|---|
| Min. Power Required PTO | 90 hp | 110 hp | 130 hp |
| Max. Power Allowed PTO | 200 hp | 220 hp | 240 hp |
| Linkage | Cat II & Cat III | Cat II & Cat III | Cat II & Cat III |
| Hydraulic Valves Required | 1 DA (Depth) | 1 DA (Depth) | 1 DA (Depth) |
| Name | CD2301 | CD2351 | CD2401 |
|---|---|---|---|
| Disc Diameter and Thickness | 600 x 6 mm | 600 x 6 mm | 600 x 6 mm |
| No. of Discs | 24 | 28 | 32 |
| Disc Spacing | 245 mm | 245 mm | 245 mm |
| Lateral Disc Gang Adjustment | Yes (by Bolt Crank) | Yes (by Bolt Crank) | Yes (by Bolt Crank) |
| Conical Heat Treated Long Life Discs w/Small Notches | |||
| Maintenance Free Disc Arm and Double Roller Oblique Bearing Assembly | |||
| Bearing Hub Seals | 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side | 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side | 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side |
| Disc Hub Shaft Size | 35 mm dia. | 35 mm dia. | 35 mm dia. |
| Ideal Working Depth | 30 – 150 mm | 30 – 150 mm | 30 – 150 mm |
| Disc Arm Protection | Rubber Shock 3D Auto-Reset System | Rubber Shock 3D Auto-Reset System | Rubber Shock 3D Auto-Reset System |
| Ideal Working Speed – Conditions Dependant | 10 – 20 km/h | 10 – 20 km/h | 10 – 20 km/h |
| Inter Gang Distance | 900 mm | 900 mm | 900 mm |
| Disc Gang Frame Box Size | 100 x 100 x 8 mm | 100 x 100 x 8 mm | 100 x 100 x 8 mm |
| Depth Control | By Rear Roller | By Rear Roller | By Rear Roller |
| Depth Control Adjustment | Hydraulic | Hydraulic | Hydraulic |
| Rear Roller Equipment | Cage Roller ø550mm or ActiPack Roller ø565mm | Cage Roller ø550mm or ActiPack Roller ø565mm | Cage Roller ø550mm or ActiPack Roller ø565mm |
| Seed Box Fitment Possible | |||
| 2 Year Factory Machine Warranty | |||
| Underbeam Clearance | 794 mm | 794 mm | 794 mm |
| Name | CD2301 | CD2351 | CD2401 |
|---|---|---|---|
| Rear Levelling Finger Harrows | |||
| Adjustable Side Deflector Plates |
