Compact Disc CD1001 Series

Model Comparison Product Features Specifications

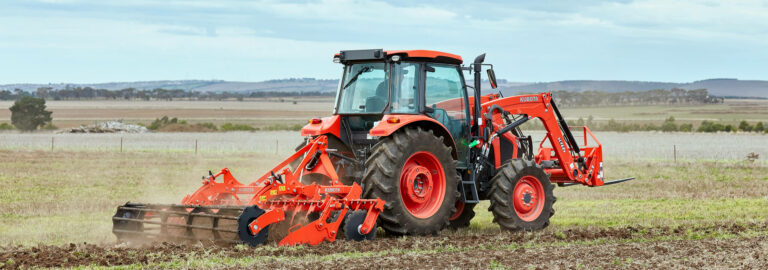

Compact Disc CD1001 Series previewCompact Disc CD1001 Series
The Kubota CD1001 Series Compact Disc is designed for shallower operation at up to 10 cm working depth. It’s 15% lighter than the CD2001, and thus easier to lift, which is economical and ideal for reducing soil compaction. The CD1001 is available in working widths from 2 m to 3.5 m and equipped with a disc arm ready to receive the 520 x 5 mm heat-treated conical disc without lateral movement during work for consistent cutting quality.

Model Comparison

Finance Offers
Download Brochure
  • 2 m
  • 2.5 m
  • 3 m
  • 3.5 m

Product Features

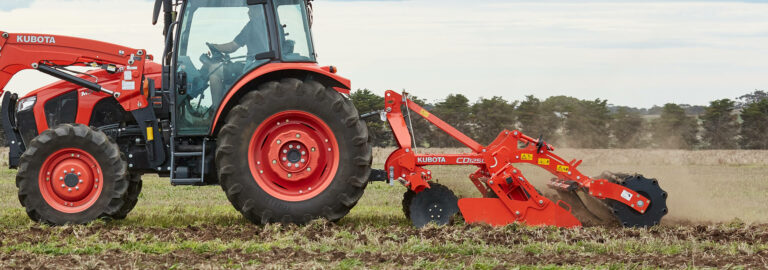

The Kubota CD1001 Series has a strong main frame design that is carried across the complete rigid CD range. Its light weight makes it easy to lift, resulting in reduced soil compaction. With user-friendly settings, it’s also easy to operate and has good levelling and controlled soil flow.

kubota previewkubota
1
2
3
4
5

Disc Arms and Discs

The CD1001 Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 520 x 5 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals promote long life under high pressure at fast working speeds.

Disc Arms and Discs

The CD1001 Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 520 x 5 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals promote long life under high pressure at fast working speeds.

Specifications

Download Brochure
Dimensions & Weight
Name CD1201 CD1251 CD1301 CD1351
Working Width 2 m 2.5 m 3 m 3.5 m
Transport Width 2 m 2.5 m 3 m 3.5 m
Weight w/Cage Roller 1,133 kg 1,298 kg 1,462 kg 1,662 kg
Weight w/ActiPack Roller 1,406 kg 1,627 kg 1,854 kg 2,117 kg
Name CD1201 CD1251 CD1301 CD1351
Min. Power Required PTO 60 hp 70 hp 90 hp 100 hp
Max. Power Allowed PTO 100 hp 120 hp 150 hp 180 hp
Linkage Cat II & Cat III Cat II & Cat III Cat II & Cat III Cat II & Cat III
Name CD1201 CD1251 CD1301 CD1351
Disc Diameter and Thickness 520 x 5 mm 520 x 5 mm 520 x 5 mm 520 x 5 mm
No. of Discs 16 20 24 28
Disc Spacing 245 mm 245 mm 245 mm 245 mm
Conical Heat Treated Long Life Discs w/Small Notches
Maintenance Free Disc Arm and Double Roller Oblique Bearing Assembly
Bearing Hub Seals 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side 5 Lip Seals + 1 Bearing Seal + O-Ring on Bearing Side
Disc Hub Shaft Size 35 mm dia. 35 mm dia. 35 mm dia. 35 mm dia.
Ideal Working Depth 20 – 100 mm 20 – 100 mm 20 – 100 mm 20 – 100 mm
Disc Arm Protection Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System Rubber Shock 3D Auto-Reset System
Ideal Working Speed – Conditions Dependant 10 – 20 km/h 10 – 20 km/h 10 – 20 km/h 10 – 20 km/h
Inter Gang Distance 900 mm 900 mm 900 mm 900 mm
Disc Gang Frame Box Size 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm
Depth Control By Rear Roller By Rear Roller By Rear Roller By Rear Roller
Depth Control Adjustment Mechanical Mechanical Mechanical Mechanical
Rear Roller Equipment Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm Cage Roller ø550mm or ActiPack Roller ø565mm
Seed Box Fitment Possible
2 Year Factory Machine Warranty
Name CD1201 CD1251 CD1301 CD1351
Rear Levelling Finger Harrows
Adjustable Side Deflector Plates
