SP05A (2WD)

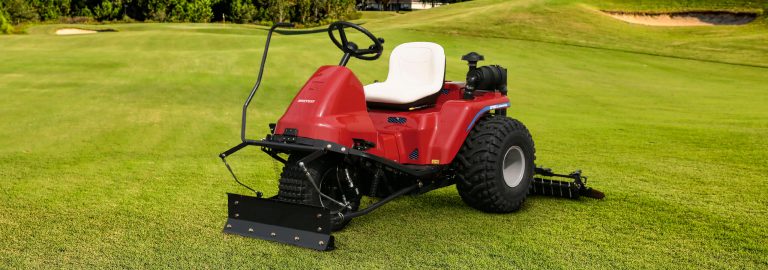

Bunker Rake SP05

The Baroness SP05 bunker rake is designed to adapt to all kinds of bunker conditions with power steering to reduce operator fatigue, selectable 2WD/3WD, low center of gravity and fully floating rake implement. Additional implements available to suit every application. The power steering reduces operator fatigue, the cultivator can be locked in a moment at the desired depth and the rake is designed to even out all bunkers, swinging smoothly with a low fulcrum. Baroness gives proven quality and performance, superior design and ease of operation.

Model Comparison

Finance Offers

Download Brochure

13.2 kW (17.7 hp)

Product Features

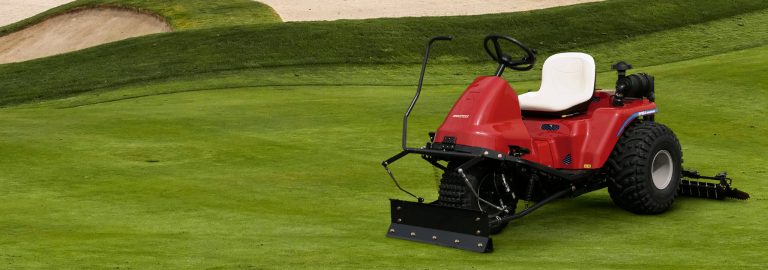

Engineered To Adapt

This Bunker Rake is designed to adapt to all kinds of bunker conditions with power steering, switchable 2WD/3WD, low centre of gravity and free-floating adjustable rake and finishing brush.

Engineered To Adapt

This Bunker Rake is designed to adapt to all kinds of bunker conditions with power steering, switchable 2WD/3WD, low centre of gravity and free-floating adjustable rake and finishing brush.

Specifications

Download Brochure

Engine

Name	SP05A (2WD)
Engine Model	Vanguard 356447
Engine Type	Air-cooled 4-Cycle Petrol
Power	13.2 kW (17.7 hp)
Total Displacement	570 cc
Fuel tank capacity	15 L

Drive Train

Name	SP05A (2WD)
Transmission	Hydrostatic
Drive Method	2WD

Speed

Name	SP05A (2WD)
Forward	16 km/h
Reverse	6 km/h

Dimensions

Name	SP05A (2WD)
Length	215 cm
Width	190 cm
Height	120 cm
Weight	442 kg
Turning Radius	339 cm
Rake Width	190 cm
Max. Inclination for Operation	15°
Front Tyre	PD21 x 11.00 – 10
Rear Tyre	25 x 13.00 – 9
