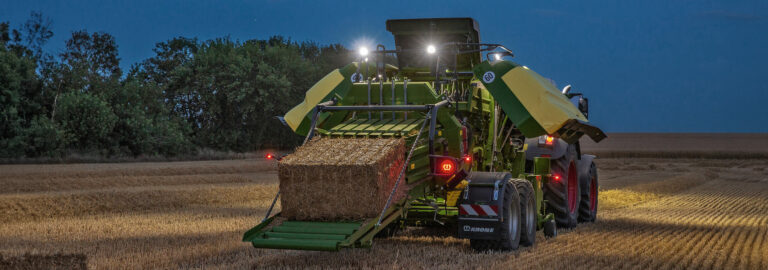

BiG Pack MultiBale Large Square Baler

Model Comparison Product Features Specifications

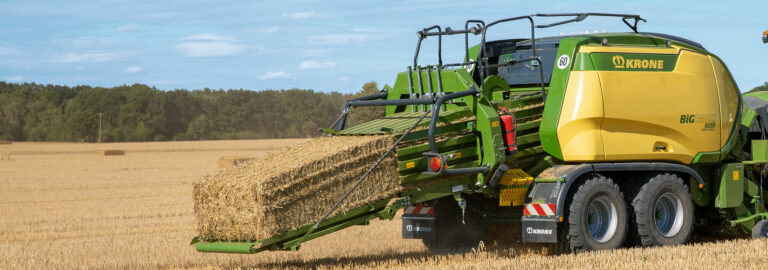

The Krone Multibale system allows you to produce small and easy-to-handle square bales. The system allows the operator to choose between producing conventional large bales or up to nine 0.3 to 1.35 metre long small bales in a single large bale. Operators can easily set the length of the entire bale and the number of small bales on the terminal in the tractor cab.MultiBale makes handling bales easy without the need of additional machinery.

Model Comparison

Finance Offers

Download Brochure

140 hp
160 hp
190 hp
190 hp

Product Features

Divided Needle Yoke

MultiBale is possible thanks to the divided needle yoke. In MultiBale mode, two knotters knot the small packs separately while the remainder knot the small bales together into a single large bale. The two needle yokes are coupled and uncoupled by a controlled latch. Once the small bales have been tied, the two yokes automatically re-engage to supply all knotters with twine and tie the bales together.

Divided Needle Yoke

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	BP870HDP Multibale	BP870HDP-XC Multibale	1270-G5 Multibale	1270VC-G5 Multibale
Chamber Width	800 mm	800 mm	1,200 mm	1,200 mm
Chamber Height	700 mm	700 mm	700 mm	700 mm
Bale Length Min.	1,000 mm	1,000 mm	1,000 mm	1,000 mm
Bale Length Max.	2,700 mm	2,700 mm	2,700 mm	2,700 mm
Transport Width (depending on tyres)	3,000 mm	3,000 mm	2,990 mm	2,990 mm
Weight (approx.)	9,600 kg	9,600 kg	12,300 kg	12,300 kg
Transport Length	7,950 mm	7,950 mm	8,850 mm	8,850 mm
Working Length	9,710 mm	9,190 mm	10,310 mm	10,310 mm
Height	2,960 mm	2,960 mm	3,250 mm	3,250 mm
Working Width (depending on tyres)	2,550 mm	2,550 mm	2,990 mm	2,990 mm
Cutting length Min.		44 mm	44 mm	44 mm
Tyre Size	560 / 45 R 22.5	560 / 45 R 22.5	620 / 50 R 22.5	620 / 50 R 22.5

Specifications

Name	BP870HDP Multibale	BP870HDP-XC Multibale	1270-G5 Multibale	1270VC-G5 Multibale
PTO Min.	140 hp	160 hp	190 hp	190 hp
Spline on PTO	1 3/4" 20 Spline with Freewheel	1 3/4" 21 Spline	1 3/4" 20 Spline with Freewheel	1 3/4" 20 Spline with Freewheel
Tandem Steering
Double Knotter – V Knotter
Knotters	5	5	6	6
Twine Storage	32	32	30	30
Strokes Per Minute	49	49	45	45

Standard Options

Name	BP870HDP Multibale	BP870HDP-XC Multibale	1270-G5 Multibale	1270VC-G5 Multibale
Electric Bale Length
Active Pickup with Active Driven Auger
Integrated Weight Scale with 4 Weight Cells
Work Lights for Knotter Platform
Hydraulic Parking Jack
Krone Twine Rolls Included	10	10	10	10

Standard Extras

Name	BP870HDP Multibale	BP870HDP-XC Multibale	1270-G5 Multibale	1270VC-G5 Multibale
Comfort ECU (monitor not included) Isobus Ready
Isobus Terminal	Opt. CC1200	Opt. CC1200	Opt. CC1200	Opt. CC1200
Retrofit STW Power Harness for Non Isobus Tractor
Additional Air Hose for Air Cleaner (mount to tractor cab roof)
Knotter Emergency Kit (inc. bill hooks, tongues, knife arm etc.)
Extra LED Work Lights & Beacon Light
Ball Joint Drawbar Eye	CAT 3 - 40mm (CAT 4 - 50mm available as an option)	CAT 3 - 40mm (CAT 4 - 50mm available as an option)	CAT 3 - 40mm	CAT 3 - 40mm
Safety Chain
