AX280D
/ AX310D

AX Series Forage and Transport Wagons

Model Comparison Product Features Specifications

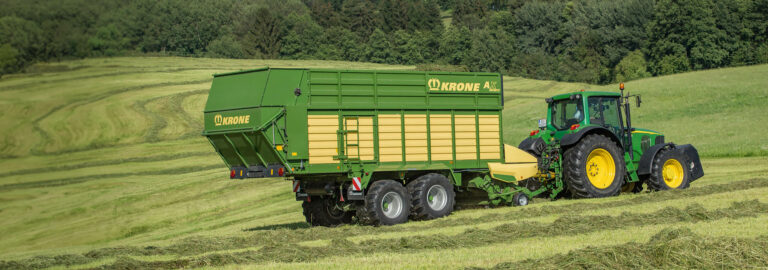

AX Series Forage and Transport Wagons previewAX Series Forage and Transport Wagons
Innovations such as the camless EasyFlow pick-up, the massive cut-and-feed rotor, the knife bank that swings out to the side, and the chain-and-slat floor that slopes at the front combine to implement higher throughputs, lower input power, more operator comfort and less wear and maintenance in the AX Series of Krone wagons. The AX Forage Wagons offer many of the same features as the larger RX and ZX Wagons. The AX wagon range consists of AX280D and AX310GD with 28m³ and 31m³ capacity.

Model Comparison

Finance Offers
Download Brochure
  • 28 m3
  • 31 m3

Product Features

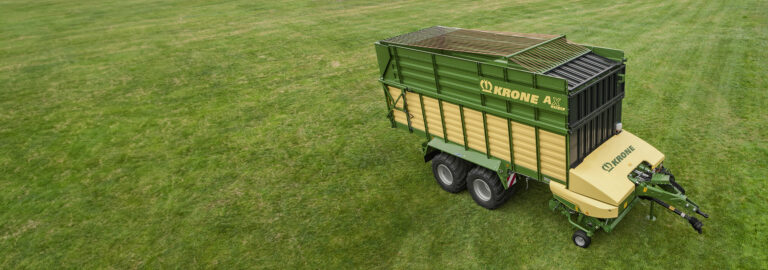

kubota previewkubota
1
2
3
4

EasyFlow Pickup

The AX Series features a 1.8 metre EasyFlow pick-up which easily gathers wide swaths of material and feeds it to the rotor cutter in a consistent flow. Jockey wheels provide optimal ground clearance.

EasyFlow Pickup

The AX Series features a 1.8 metre EasyFlow pick-up which easily gathers wide swaths of material and feeds it to the rotor cutter in a consistent flow. Jockey wheels provide optimal ground clearance.

Specifications

Download Brochure
Dimensions & Weight
Name AX280D AX310D
Volume DIN 28 m3 31 m3
Knives / Theoretical Chopping Length Min. 32 mm 32 mm
Knives / Theoretical Chopping Length Max. 44 mm 44 mm
Length (approx) 9,600 mm 9,600 mm
Width Min. (approx) 2,460 mm 2,590 mm
Width Max. (approx) 2,790 mm 2,790 mm
Height Min. (approx) 3,600 mm 3,870 mm
Height Max. (approx) 3,650 mm 3,800 mm
Platform Height (approx) 1,300 mm 1,300 mm
Track Width (approx) 2,000 mm 2,000 mm
Empty Weight (approx) 7,700 kg 8,000 kg
Drawbar Tongue Load Top Hitching 2,000 kg 2,000 kg
Drawbar Tongue Load Bottom Hitching 3,000 kg 3,000 kg
Pick-Up Work Width 1,800 mm 1,800 mm
Crop Feed Width 1,510 mm 1,510 mm
Rotor Cutter Diameter 750 mm 750 mm
Ground Clearance (approx. depending on spec.) 6,200 mm 6,200 mm
Tyre Size 710 / 40 R 22.5 Trac 710 / 40 R 22.5 Trac
Name AX280D AX310D
Minimum HP Requirement 120 hp 130 hp
Filling Rate Min. (approx.) 6 min 7 min
Filling Rate Max. (approx.) 9 min 10 min
Upload Rate (approx.) 3 min 3.5 min
Discharge Rollers 2 2
Discharge Rollers Option 3 3
PTO Shaft 6 spline 1 3/8
Wheel 8 Stud Rim 8 Stud Rim
Name AX280D AX310D
Automatic Loading
EasyFlow Camless Pick-Up
Wide Angle PTO Shaft
Automatic Loading Sensor
Drawbar Suspension
Bottom Hitch K80 Ball-head Option Option
Name AX280D AX310D
Swing Out Knife Bank w/ 2nd Knife Set
IsoBus CCI 1200 CCI 1200
Retrofit STW Power Harness for Non Isobus Tractor
Ring Towing Hitch (loose) 50mm 50mm
Additional Rear Guide Wheels
Tandem Axle w/ Hydraulic Brakes
Tandem Axle Air Brakes Option
LED Work Lights
Warning Panels
40km/hr Permission
Extra Work Lights
