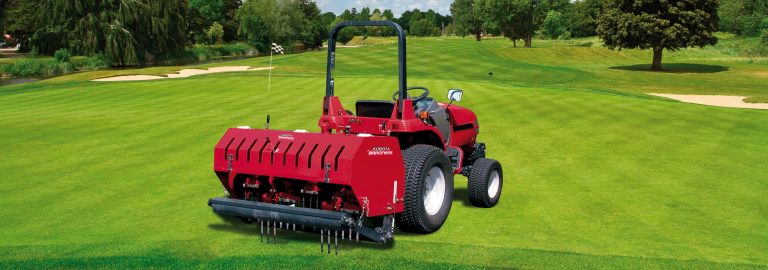

Aerator TDA1200/TDA1600

Model Comparison Product Features Specifications

The Baroness TDA1200/1600 tractor mounted Aerator is another quality machine from Kyoeisha Co. Ltd. of Japan which combines sturdiness, efficiency and simplicity to give you absolutely the best possible finish on golf greens, sports pitches and playing fields.

Model Comparison

Finance Offers

Download Brochure

1,560 mm
1,170 mm

Product Features

Designed To Deliver

2-speed gearbox achieves a hole pattern to suit all tine configurations
Rear roller can be elevated for hollow tine operations, ensuring cores aren’t compacted and difficult to harvest
Rear roller can be lowered onto the playing surface during solid tine operations to provide a level finish

Designed To Deliver

2-speed gearbox achieves a hole pattern to suit all tine configurations
Rear roller can be elevated for hollow tine operations, ensuring cores aren’t compacted and difficult to harvest
Rear roller can be lowered onto the playing surface during solid tine operations to provide a level finish

Specifications

Highlight differences

Download Brochure

Specifications

Name	TDA1600	TDA1200
Length	970 mm	970 mm
Width	1,790 mm	1,420 mm
Height	850 mm	850 mm
Weight	580 kg	495 kg
Working Width	1,560 mm	1,170 mm
Depth	180 mm	250 mm
Spacing	65 – 100 mm	62 – 100 mm
PTO Speed	540 / 1000	540 / 1000 rpm
Work Rate	3,120 m2/h	2,600 m2/h

Drive Train

Name	TDA1600	TDA1200
Transmission	2-speed Gearbox	2-speed Gearbox
Tractor Power Min.	17.6 kW (23.6 hp)	13.2 kW (17.7 hp)
