Model Comparison
- 62 hp
- 62 hp
- 68 hp
- 68 hp
- 68 hp
- 84 hp
- 84 hp
- 84 hp
- 84 hp
- 84 hp
- 94.5 hp
- 95 hp
- 95 hp
Product Features

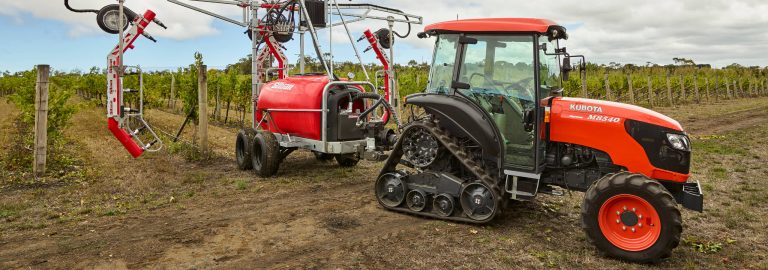

Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency. Narrow enough to work between the vines and low enough to get you under the limbs. Kubota has engineered these models specifically for those who work in vineyards, orchards or anywhere else that might require a narrow and compact tractor with M-Series power. With an overall width of just 1,486 mm with standard tyres, you can work almost anywhere. To further ensure that these machines go where you want them, we’ve also rounded the standard fenders, placed the ROPS in the middle of the tractor, included standard foldable hazard lights and made certain that the operating levers are positioned so as not to interfere with low branches.
Engine
The V3800DI-T engine powers the Narrow M8540 tractors, equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) . The E-CDIS engines offer a unique combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction. The engines of the Kubota M-Series tractors comply with Tier II emission regulations.

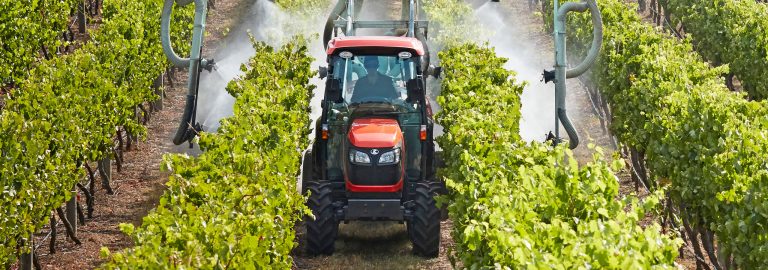

M8540 Narrow ROPS & CAB in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their M8540 Narrow ROPS & CAB.
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| Fuel Type | Diesel | Diesel | Diesel |
| Cylinders | 4 | 4 | 4 |
| Engine Model | Kubota V3800 | Kubota V3800 | Kubota V3800 |
| Engine Gross | 84 hp | 84 hp | 84 hp |
| PTO | 75 hp | 75 hp | 76 hp |
| Displacement | 3,769 cc | 3,769 cc | 3,769 cc |
| Fuel Tank Capacity | 78 l | 60 l | 70 l |
| Rated Speed | 2,600 rpm | 2,600 rpm | 2,600 rpm |
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| Transmission | Synchronized | Synchronized | Synchronized |
| Ranges | 3 Range | 3 Range | 3 Range |
| Gears | 15F | 15F | 12F |
| Drive Method | 4WD | 4WD | 4WD |
| Brakes | Wet Disc | Wet Disc | Wet Disc |
| PTO 540 | 1,000 rpm | 1,000 rpm | 1,000 rpm |
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| Hydraulic Pump Output | 61 l/min | 61 l/min | 61 l/min |
| 3-Point Hitch | Category II | Category II | Category II |
| Rear Linkage Lift Capacity | 2,300 kg | 2,300 kg | 2,300 kg |
| Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| AG |
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| Minimum Low Speed | 0.4 km/h | 0.4 km/h | 0.3 km/h |
| Maximum High Speed | 34.8 km/h | 34.8 km/h | 21.3 km/h |
| Name | M8540DCN | M8540DN | M8540NPK |
|---|---|---|---|
| Length | 3,680 mm | 3,680 mm | 3,675 mm |
| Width | 1,440 mm | 1,440 mm | 1,430 mm |
| Height | 2,260 mm | 2,240 mm | 2,340 mm |
| Wheelbase | 1,635 mm | 2,050 mm | 2,153 mm |
| Ground Clearance | 380 mm | 380 mm | 360 mm |
| Turning Radius | 3.5 m | 3.5 m | 4 m |
| Tractor Weight | 2,410 kg | 2,385 kg | 3,000 kg |
