Product Features

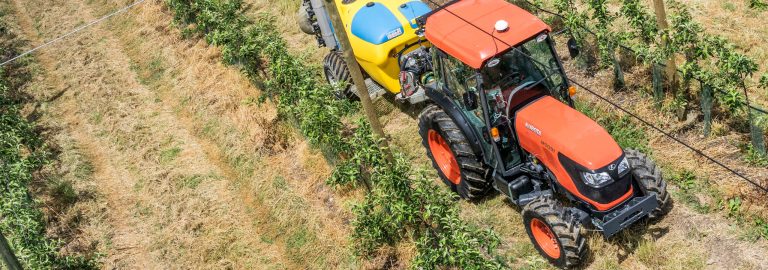

The M5001N Series tractors turn smoothly and tightly. With Kubota’s exclusive Bi-speed Turn technology, whenever a turn exceeds an angel of about 30 degrees, the front wheels begin turning twice as quickly as the rear wheels, allowing you to safely and easily enter an adjacent crop row on the first attempt. Bi-speed turning automatically turns off when traveling at high speed. The M5001N Series has a ground clearance that is among the best in its class. A high front axle provides the clearance needed for delicate work in orchards and vineyards, allowing the M5001N Series to pass over objects between rows as well as avoid damaging crops. A long wheelbase provides greater stability in narrow confines and improves operator comfort. Just like the standard M5001 Series, the M5001N Series offers a supreme level of operator comfort, with an all- glass cab and rounded windows for excellent visibility, wide doors on each side, generous head and leg room, and a sophisticated air conditioning system that provides a pleasant cab environment no matter what the weather outside. For easier entry and exit as well as optimum working comfort, the M5001N offers a tilt steering wheel and a flat platform. The angle of the steering wheel can be quickly adjusted with the press of a pedal, providing greater ergonomics and a uninterrupted views of the dashboard.

kubota previewkubota
1
2
3
4
5

Engine

The M5 Narrow Series is powered by a 3.8l Kubota engine with electronic engine control to optimise the efficiency the engine output. These rugged engines also offer cleaner Tier 3b emission compliance, quieter operation, and greater fuel efficiency. The M5001 Series engines run at lower engine speeds without any loss of performance, thanks to improved torque and performance settings. Lower engine speeds also mean quieter operation, less engine wear, and greater fuel efficiency. The M5001 Series engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient.

Engine

The M5 Narrow Series is powered by a 3.8l Kubota engine with electronic engine control to optimise the efficiency the engine output. These rugged engines also offer cleaner Tier 3b emission compliance, quieter operation, and greater fuel efficiency. The M5001 Series engines run at lower engine speeds without any loss of performance, thanks to improved torque and performance settings. Lower engine speeds also mean quieter operation, less engine wear, and greater fuel efficiency. The M5001 Series engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient.

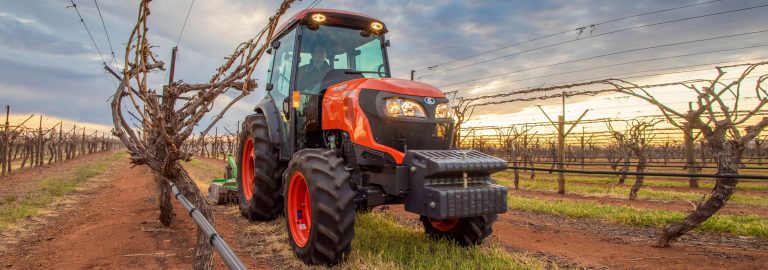

M5091/M5101 Narrow ROPS & CAB in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their M5091/M5101 Narrow ROPS & CAB.

Specifications

Download Brochure
Engine
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Fuel Type Diesel Diesel Diesel Diesel
Cylinders 4 4 4 4
Engine Model Kubota V3800 Kubota V3800 Kubota V3800 Kubota V3800
Engine Gross 93 hp 105 hp 87 hp 105 hp
PTO 75 hp 88 hp 78 hp 88 hp
Displacement 3,769 cc 3,769 cc 3,769 cc 3,769 cc
Fuel Tank Capacity 76 l 76 l 76 l 76 l
Rated Speed 2,600 rpm 2,600 rpm 2,600 rpm 2,600 rpm
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Transmission Synchronized Synchronized Synchronized Synchronized
Ranges 3 Range 3 Range 3 Range 3 Range
Gears 36F 36F 36F 36F
Drive Method 4WD 4WD 4WD 4WD
Brakes Wet Disc Wet Disc Wet Disc Wet Disc
PTO 540 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Hydraulic Pump Output 68.6 l/min 68.6 l/min 63.3 l/min 68.6 l/min
3-Point Hitch Category II Category II Category II Category II
Rear Linkage Lift Capacity 2,300 kg 2,300 kg 2,300 kg 2,300 kg
Steering Hydraulic Power Steering Hydraulic Power Steering Hydraulic Power Steering Hydraulic Power Steering
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
AG
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Minimum Low Speed 0.25 km/h 0.25 km/h 0.23 km/h 0.25 km/h
Maximum High Speed 35.1 km/h 35.1 km/h 35.1 km/h 35.1 km/h
Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Length 3,750 mm 3,750 mm 3,750 mm 3,750 mm
Width 1,420 mm 1,420 mm 1,360 mm 1,420 mm
Height 2,310 mm 2,310 mm 2,290 mm 2,310 mm
Wheelbase 2,130 mm 2,130 mm 2,130 mm 2,130 mm
Ground Clearance 420 mm 420 mm 290 mm 420 mm
Turning Radius 3.8 m 3.8 m 3.8 m 3.8 m
Tractor Weight 2,600 kg 2,600 kg 2,490 kg 2,600 kg

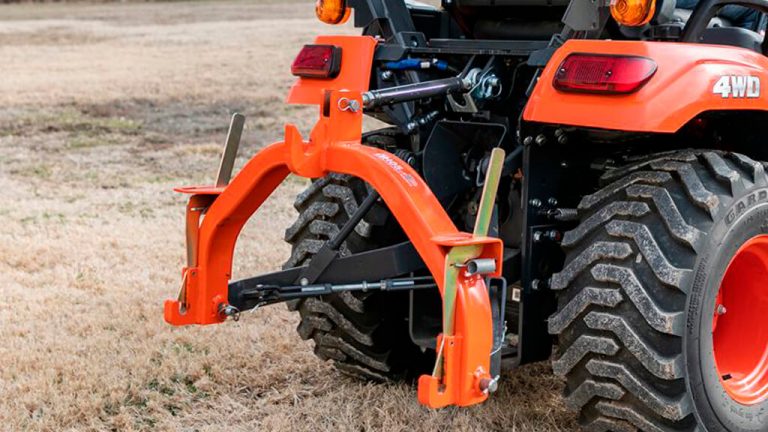

Implement Solutions
