Product Features

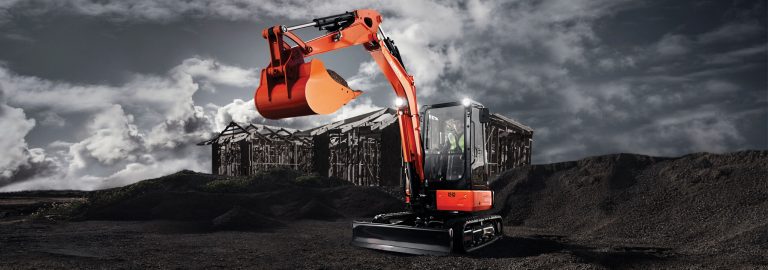

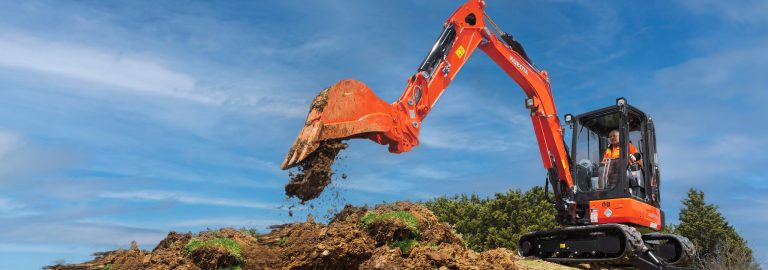

The Kubota 3-ton class KX033-4 excavator is designed for efficiency, built for stability and created for comfort. With a strong breakout force and exceptional power, the KX033-4 offers a level of performance to handle a wide variety of tough excavating jobs with speed and efficiency.
Engine
Powered by a Kubota 24.8HP Tier 4 engine for reliability and to maximise digging and lifting performance. Easy maintenance as the engine is organised with easy access to primary engine components. Durable steel rear and side panels open easily for quick inspection and routine maintenance to keep machine in peak operating condition. Accumulator helps to change hydraulically driven attachments by clearing residual pressure in the hydraulic lines.
Kubota KX033-4 Compact Excavator in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota KX033-4 Compact Excavator.
| Name | KX033-4 |
|---|---|
| Engine Type | Interim Tier 4 Emission Level |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D1703M |
| Engine Net | 23.9 HP |
| Engine Gross | 24.8 HP |
| Displacement | 1,647 cc |
| Rated Speed | 2,200 rpm |
| Name | KX033-4 |
|---|---|
| Max. Traction Force | 2,763 kgf |
| Tumbler Distance | 1,665 mm |
| Crawler Length | 2,100 mm |
| Shoe Width | 300 mm |
| Ground Contact Pressure - Canopy (Per cm2) | 0.307 kgf |
| Ground Contact Pressure - Cab (Per cm2) | 0.321 kgf |
| Name | KX033-4 |
|---|---|
| Hydraulic Pump Capacity | 39.6 variable x 2 / 20.9 Gear x 1 l/min |
| Aux Hydraulic Flow - AUX1 | 60 l/min |
| Max. Breakout Force - Bucket | 3,694 kgf |
| Max. Breakout Force - Arm | 1,756 kgf |
| Name | KX033-4 |
|---|---|
| Swing System | Conventional Swing |
| Unit Swing Speed | 8.9 rpm |
| Boom Swing Angle Left | 70 degree |
| Boom Swing Angle Right | 48 degree |
| Name | KX033-4 |
|---|---|
| Low | 3 km/h |
| High | 4.6 km/h |
| Name | KX033-4 |
|---|---|
| Length | 4,730 mm |
| Width | 1,550 mm |
| Height - Canopy | 2,480 mm |
| Height - Cab | 2,470 mm |
| Min. Ground Clearance | 290 mm |
| Operating Weight - Canopy | 3,365 kg |
| Operating Weight - Cab | 3,511 kg |
| Name | KX033-4 |
|---|---|
| Max. Blade Width | 1,550 mm |
| Blade Height | 345 mm |
| Max. Lift Above Ground | 365 mm |
| Max. Drop Below Ground | 375 mm |
| Name | KX033-4 |
|---|---|
| Fuel Reservoir | 46.9 l |
| Hydraulic Oil Reservoir | 44.6 l |
| Hydraulic Oil System | 61 l |
| Engine Oil | 5.3 l |
| Name | KX033-4 |
|---|---|
| Operator Station | Canopy |
| Name | KX033-4 |
|---|---|
| Max. Digging Height | 4,980 mm |
| Max. Dumping Height | 3,530 mm |
| Max. Digging Depth | 3,210 mm |
| Max. Vertical Digging Depth | 2,235 mm |
| Max. Digging Radius At Ground | 5,120 mm |
| Max. Digging Radius | 5,230 mm |
| Min. Turning Radius - w/o Swing | 2,020 mm |
| Min. Turning Radius - Swing | 1,510 mm |
| Min. Tail Turning Radius | 1,250 mm |
Implement Solutions
Kubota’s formidable KX033-4 conventional swing excavators responds to the needs of the customer and through continued innovation and development, making them the perfect fit for the Toku Hammer. Kubota are the proud distributors of Japan’s premium hydraulic hammer brand, Toku. For the past 60 years, Toku have been dedicated to supplying high quality, powerful and reliable hammers, renowned for their long life, reducing operating costs and minimising environmental impact. Available in mini, medium and large, Toku hammers are ideal for a variety of applications from construction and demolition to rental, recycling, mining and quarry work.
